vane air motor / ATEX / compact / lubricated
2AM series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

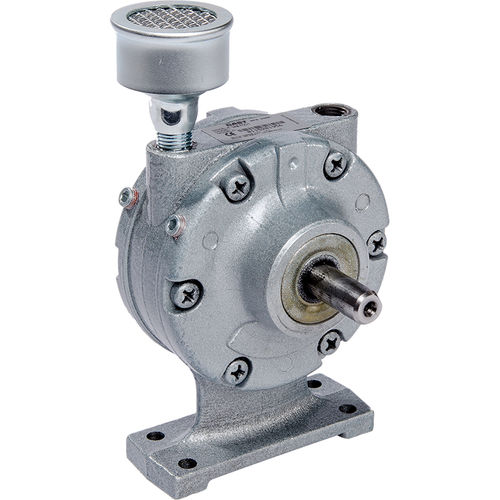

vane air motor / ATEX / compact / lubricated vane air motor / ATEX / compact / lubricated - 2AM series
{{requestButtons}}

Characteristics

  • Technology.:

    vane

  • Other characteristics:

    ATEX, compact, lubricated

  • Torque:

    Max.: 3.1 Nm (2.29 ft.lb)

    Min.: 0 Nm (0 ft.lb)

  • Rotational speed:

    Max.: 3,000 rpm (18,849.56 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

  • Power:

    0.68 kW (0.92 hp)

Description

Power 0.93 hp ( 0.68 kW )
Max Speed 3000 rpm
Torque @ Max Speed 19.5 lb-in ( 2.2 Nm )
Max Air Consumption 30 cfm ( 49.5 m3/h )
Speed @ Max Torque 350 rpm
Max Torque 26.1 lb-in ( 3.1 Nm )

Product Details

The compact and portable 2AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Mounting Options
Gast air motors can operate in any position offering you a great degree of flexibility when mounting the air motor or integrating the air motor into an OEM system. Imperial units are available in foot, hub and NEMA 56Cmounting options. Metric units are available in IEC #72 mounting frame sizes.

Product Marking
This product is Marked: II 2 G D c T4 (+1 ℃
Customization
Customization of materials, shafts, paint colors, mounting configurations and gearing is available for OEM applications.

Instant starting, stopping & reversing
The ability to instantly start, stop and reverse (RV models) eliminates the operational delays associated with electric motor speed up and slow-down periods.
