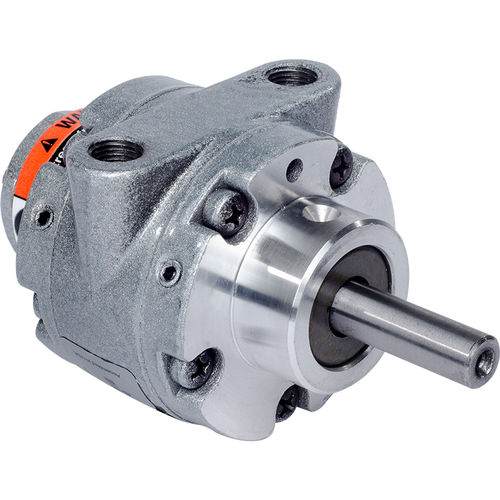

Vane air motor 1AM series
ATEXcompactlubricated

vane air motor
vane air motor
vane air motor
Add to favorites
Compare this product


Characteristics

Technology.
vane
Other characteristics
ATEX, compact, lubricated
Torque

Min.: 0 Nm (0 ft.lb)

Max.: 0.7 Nm (0.52 ft.lb)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 10,000 rpm (62,831.85 rad.min-1)

Power

0.33 kW (0.45 hp)

Description

Power 0.45 hp ( 0.33 kW ) Max Speed 10000 rpm Torque @ Max Speed 2.75 lb-in ( 0.31 Nm ) Max Air Consumption 20.5 cfm ( 35.1 m3/h ) Speed @ Max Torque 650 rpm Max Torque 5.6 lb-in ( 0.7 Nm ) Product Details The compact and portable 1AM/1UP series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations. Mounting Options Available in a hub option, Gast air motors can operate in any position offering you a great degree of flexibility when mounting the air motor or integrating into an OEM system. Product Marking This product is Marked: II 2 G D c T4 (+1 ℃

Catalogs

1AM
1AM
1 Pages
