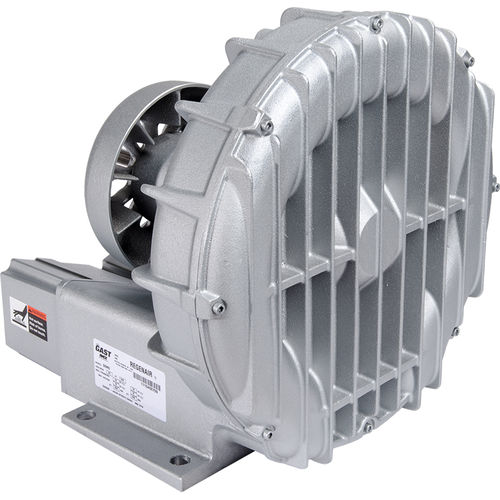

Air blower SDR5 series

centrifugalsingle-stageregenerative

Power 10 hp ( 7.5 kW ) Max Flow (50 Hz) 240.0 cfm ( 408.0 m3/h ) Max Flow (60 Hz) 240.0 cfm ( 408.0 m3/h ) Max Pressure (50 Hz) 152 in-H20 ( 379 mbar ) Max Pressure (60 Hz) 152 in-H20 ( 379.0 mbar ) Max Vacuum (50 Hz) 120 in-H20 ( 299 mbar abs ) Max Vacuum (60 Hz) 120.0 in-H20 ( 299.0 mbar abs ) Weight 31 lbs ( 14 kg ) Min Temperature 32 °F ( 0 °C ) Max Temperature 104 °F ( 40 °C ) Product Details With rugged construction that’s suitable for demanding applications, the SDR4, SDR5, SDR6 series of blowers offer oil-less operation and have no wearing components, which ensures that the discharge air remains free of contamination. In addition, they have very few moving parts, which minimizes downtime and helps to lessen operating noise levels. Aluminum blower housing, impeller, and cover Aluminum blower housing, impeller, and cover makes major components inherently corrosion resistant promoting extended product life. Separate drive models The separate drive allows customer to select the motor technology that best suits their needs and application. Drive pulley size can be changed and variable speed motors can be used to lower the speed and control the amount of air flow. Optional relief valve recommended Optional relief valve recommended to prevent over pressure/over-vacuum for applications that require deadheading.
