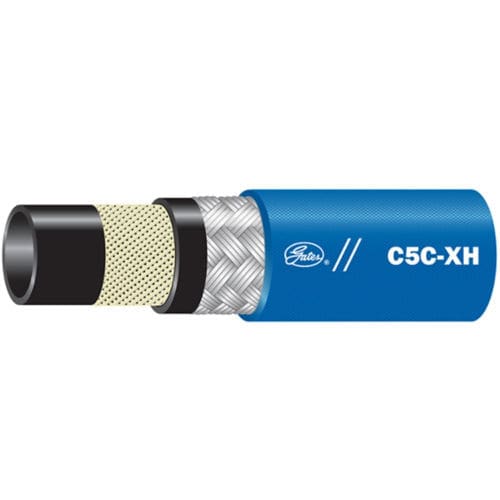

Oil hose C5C-XH XTREME™
polyethylene (PE)high-temperatureconstruction

Oil hose - C5C-XH XTREME™ - Gates - polyethylene (PE) / high-temperature / construction
Oil hose - C5C-XH XTREME™ - Gates - polyethylene (PE) / high-temperature / construction
Oil hose - C5C-XH XTREME™ - Gates - polyethylene (PE) / high-temperature / construction - image - 2
Add to favorites
Compare this product
Go to the Gates website for more information

Characteristics

Use
for oil
Material
polyethylene (PE)
Applications
high-temperature, construction, for automotive applications, for agricultural applications, for heating, brake
Other characteristics
flexible, braided
Inner diameter

Min.: 6.3 mm
(0.248 in)

Max.: 28.6 mm
(1.126 in)

Outer diameter

Min.: 14.7 mm
(0.579 in)

Max.: 27.4 mm
(1.079 in)

Pressure

Min.: 172 bar
(2,494.649 psi)

Max.: 827 bar
(11,994.621 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Delivered length

Min.: 37 m
(121'04" )

Max.: 117 m
(383'10" )

Description

High-temperature lube oil lines for on-highway truck and bus, off-road construction and agricultural vehicles. Recommended for high temperature petroleum based or phosphate ester fluids, turbocharger oil supply and hot lube oil lines. Meets the requirements of SAE 100R5 for hydraulic applications, SAE 1405 hot oil circulation. Recommended Couplings: C5 Field Attachable Couplings (-6, -16 and -20), C5X Field Attachable Couplings (-5, -8 and -12), GlobalSpiral Couplings (Depending on Size), MegaCrimp Couplings (Depending on Size). DOT FMVSS-106-74 type AII and SAE J1402 type AII for air brake applications (-4 to -12[-5, -6, -8, -16 and -20 validated with MegaCrimp®; -10, -12 with GlobalSpiral. Please see Gates eCrimp for correct fitting recommendation. FEATURES AND BENEFITS Has passed the tube fuel resistance requirements of SAE 30R2.
