Hot oil hose 80066 24HO X 100FT

CSMnitrileheating

Overview
Recommended for static pressure, hot oiler applications. Handles continuous transfer of hot oil up to +135°C (+275°F) and intermittent up to +149°C (+300°F). Meets MSHA 2G flame resistance designation.

Key features

• Designed for static pressure, hot oiler use.
• Temperature rating: continuous +135°C (+275°F), intermittent +149°C (+300°F).
• Flame resistance: MSHA 2G.
• Inside diameter: 1.5 in (38.1 mm); length: 100 ft (30 m).
• Working pressure / Min. burst: 2300 psi.

Specifications
Part #: 24HOX100FT
Product #: 46579429
Description: 80066 24HO X 100FT

• Inside diameter: 1.5 in (38.1 mm)
• Outside diameter: 2.15 in (54.6 mm)
• Minimum bend radius: 20 in (508 mm)
• Length: 100 ft (30 m)
• Working pressure / Min. burst pressure: 2300 psi
• Temperature range: -40°F to +300°F (-40°C to +149°C)

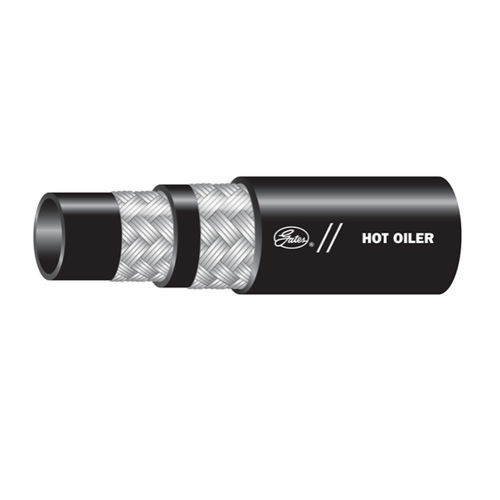

Construction

• Tube: Nitrile (Type C), oil resistant, black.
• Reinforcement: 2-braid wire.
• Cover: CSM (Type A), black.

Application
Recommended coupling: GlobalSpiral™ Plus Couplings (G22 Series).

Notes
Meets MSHA 2G.

Packaging details
Weight (lbs.): not specified
