AC disconnector CGVB-05 series

AC disconnector
AC disconnector
Add to favorites
Compare this product


Other characteristics
AC, outdoor
Primary current

Max.: 4,000 A

Min.: 1,200 A


Max.: 550 kV

Min.: 25 kV

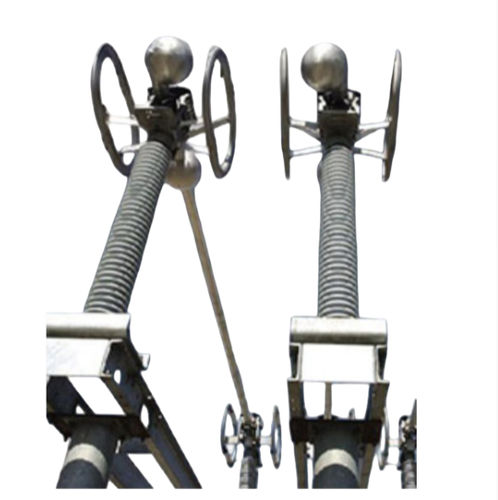

GE’s CGVB-05 vertical break disconnector is designed to reduce phase spacing to a minimum. The jaw end of the switch is supported by one fixed insulator. The hinge end consists of two insulators, one fixed, the other rotates to open and close the switch. The double movement of the aluminum blade ensures high short circuit rating and excellent ice breaking capabilities. The CGVB-05 is designed to be maintenance free with factory sealed bearing housings and counter balancing springs. •Customer Benefits •Reduced phase spacing requirements •Virtually maintenance free •No special tools required •Wide range of accessories available •Customizable to meet specific needs


No catalogs are available for this product.

See all of GE Grid Solutions‘s catalogs
