Water pump PERIClip®electricperistalticindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Technology
- peristaltic
- Domain
- industrial
- Applications
- conveying
- Flow
Max.: 0.0005 l/min
(0.00013 us gal/min)Min.: 0.0004 l/min
(0.00011 us gal/min)
Description

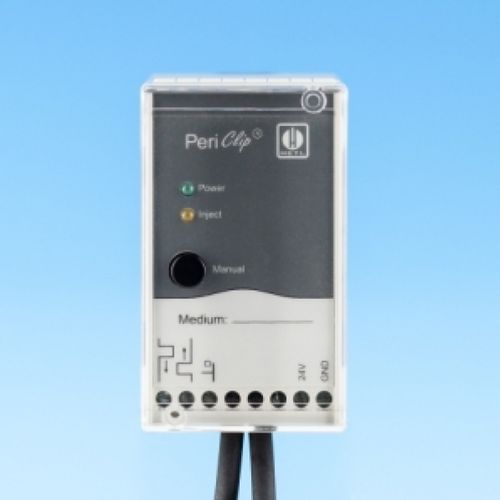

We have developed the PERIClip® peristaltic pump for use in our Testomat 2000® and Titromat® devices. The pump automatically fills the measuring chamber system of the device and is suitable for conveying of aqueous media.
Technical Data
Principle of operation: motor powered peristaltic pump
Delivery volume: 400 – 500 µl/min
Ambient temperature: 10-45°C / / 50-113°F
Dimensions (HxWxD): 75 mm x 45 mm x 110 mm / 3" x 1,8" x 4.3"
Mounting: on 35 mm DIN rail
Tube material: Norprene
Tube dimensions: 4,8 mm outside; 1,6 mm inside
Tube connections: tube fitting
