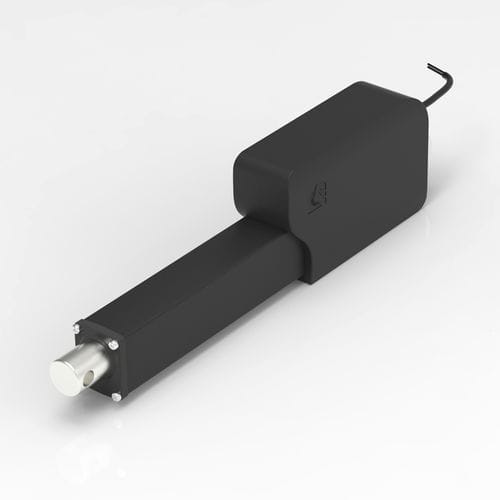

Linear actuator HTA17
electriccompactDC

linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Other characteristics
compact, DC, miniature, for construction equipment, for medical applications, for furniture, for hospital beds, for vehicles, for agricultural machinery, industrial
Stroke

Min.: 50 mm (1.969 in)

Max.: 450 mm (17.717 in)

Force

400 N, 800 N, 4,500 N

Speed

10 mm/s, 20 mm/s

Description

HTA17 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP68 Alternatively, TA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate.. General Features •Voltage of motor: 12V DC, 24V DC,36V DC, •Maximum load: 4500N •Maximum speed: 32mm/s ( load 500N) •The slowest speed: 7mm / s (Load 4500N) •Stroke: 80~700mm •Minimum dimensions: Stroke + 155 mm •Color: Silver gray or black IP rating: IP66 Operational temperature range: -20°C~+45°C Operational temperature range at full performance: +5°C~+45°C Higher duty cycle (25%) Other options: Hall sensor, Synchronous control selection High strength metallic zinc alloy housing protects motor and gear Built-in limit switches (not adjustable)
