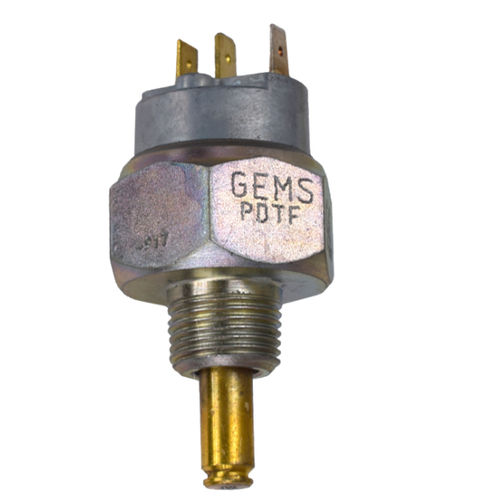

PDTF Series temperature switch is a factory set sensor for the protection of all types of internal combustion engines, pumps, compressors, gear boxes, hydraulic reservoirs, marine and industrial power plants. Model PDTF will withstand acceleration to 8G. Its compact and rugged construction allows it to be mounted in the toughest OEM applications. The PDTF utilizes a liquid filled capillary to sense temperature changes. The liquid expands as the temperature increases causing the capillary pressure to increase.
• 70°F to 285°F (20°C to 140°C)
• Withstands Acceleration to 8G
• Small Capillary for harsh applications
HousingMaterial
Zinc Plated Steel
Maximum Temperature
55°F above Set Point
Maximum Pressure
350 psi
Switch
Resistive 5 Amp, Inductive 2 Amp at 12/24 VDC and 125/250 VAC
Setting Tolerance
±6°F
Deadband
19°F (9°C) Average
