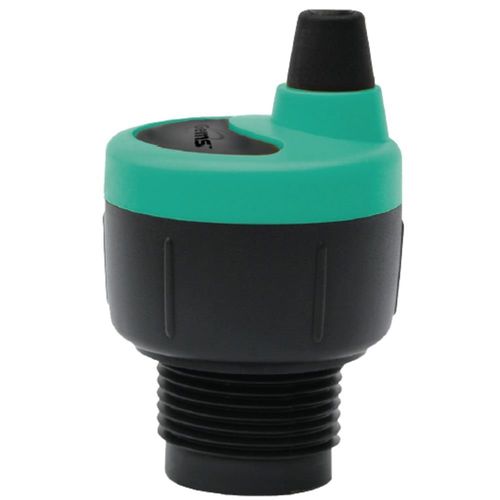

Ultrasonic level sensor UCL-510
for liquids4-20 mAfor storage tanks

Ultrasonic level sensor - UCL-510  - GEMS SENSORS & CONTROLS - for liquids / 4-20 mA / for storage tanks
Ultrasonic level sensor - UCL-510  - GEMS SENSORS & CONTROLS - for liquids / 4-20 mA / for storage tanks
Add to favorites
Compare this product

Characteristics

Technology
ultrasonic
Medium
for liquids
Interface
4-20 mA
Applications
for storage tanks
Other characteristics
compact
Level range

1,245 mm
(49.02 in)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 2.07 bar

Process temperature

Min.: -31 °F
(-35 °C)

Max.: 140 °F
(60 °C)

Description

UCL-510 Ultrasonic Continuous Level Transmitter is a non-contact level sensor with no-moving-parts built for general purpose small tank applications 49.2" (1250 mm) or less and offers switch, controller and transmitter capabilities in one multi-function transmitter. It is suited for corrosive and dirty applications, is virtually maintenance free and reduces tank system hardware. 1" NPT Mounting Non-Contact for Corrosive, Sticky or Dirty Media Provides Full Pump or Valve Control
