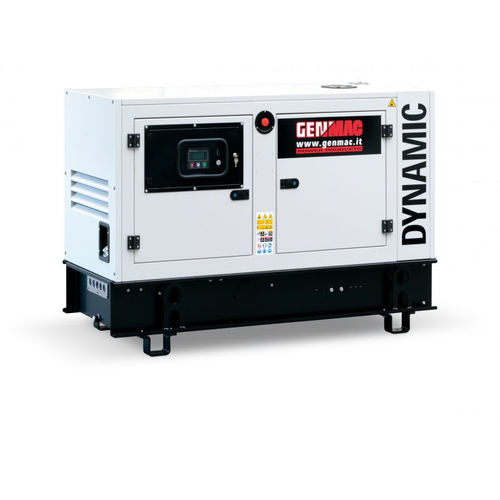

Diesel generator set DYNAMIC RGU25PS

single-phasestationarywater-cooled

Silent generator with following specifications: Frame: - Heavy duty fabricated welded base plate with high quality steel UNI S235 JR - Heavy duty rubber anti-vibration mountings - Fuel tank with drain plug and retention basin - Feet and four lifting holes on the base - Oil draining mechanical pump Canopy: - Four Large doors for easy access for service and maintenance - Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009) - High precision sheet cutting with nitrogen laser technology to avoid oxidation - Sandblasting and cataphoresis treatment of intake / exhaust grids - Weatherproof sealed joints - Lockable handles in each door - Grey RAL 7035 “orange peel” specific powder coat paint for outdoor usage - Rain cap on exhaust outlet - Coolant refilling specific hatch - Fuel filler outside enclosure - Ecological Sound foam: 100% Recyclable, 35mm thickness, fire-proof self-extinguishing class1 fire-reaction compliant washable, mechanically fixed to the frame Muffler: - Supersilent, Residential type, integrated in the canopy - With aluminum coating Control Panel: - Metal Control panel with protective back cover - Dedicated area to make easier the electrical connection to the load
