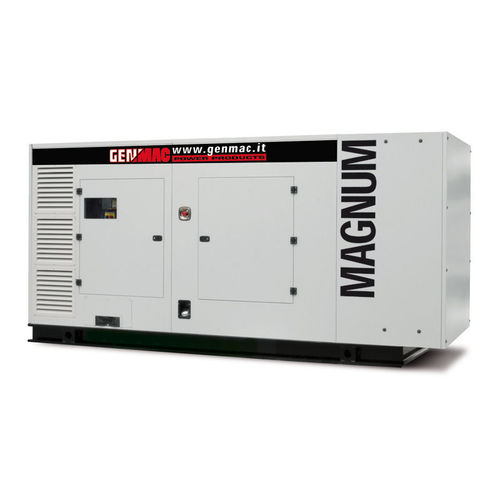

Diesel generator set MAGNUM GU700IS

three-phasestationary60 Hz

Silent generator with following specifications: Frame: - Heavy duty fabricated welded base plate with high quality steel UNI S235 JR - Heavy duty, bell type, rubber anti-vibration mountings - Dedicated area to make easier the electrical connection to the load - Fuel tank with drain plug - Feet and four lifting holes on the base - Oil draining mechanical pump Canopy: - Large doors for easy access for service and maintenance - Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009) - High precision sheet cutting with nitrogen laser technology to avoid oxidation - Sandblasting and cataphoresis treatment of intake / exhaust grids - Weatherproof sealed joints - Lockable handles in each door - Grey RAL 7035 “orange peel” specific powder coat paint for outdoor usage - Rain cap on exhaust outlet - Coolant refilling specific hatch - Fuel filler outside enclosure - Ecological Sound foam: 100% Recyclable, 40mm thickness, fire-proof self-extinguishing class1 fire-reaction compliant washable, mechanically fixed to the frame Muffler: - Residential type, Supersilent, integrated in the canopy - With high heat paint coating Control Panel: - Self-standing control panel tower made with metal structure and components to grant IP65 protection, easily removable for maintenance - Easy access to control panel through a canopy’s door, equipped with lexan window - Control panel is divided in two independent and insulated boxes separating Controls (Controller and numbered terminal board) from Power connection (circuit breaker and cable inlet) - External dedicated area to make easier the electrical connection to the load
