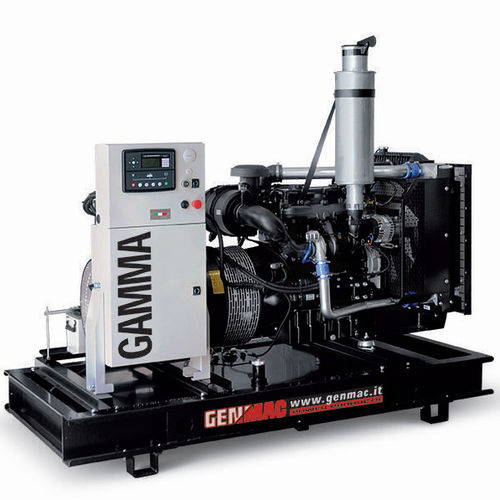

LPG generator set GAMMA-GAS GU80GO-LPG
three-phasestationary60 Hz

LPG generator set
LPG generator set
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Phase
three-phase
Portability
stationary
Frequency
60 Hz
Cooling system
air-cooled
Applications
industrial
Options and accessories
open type
Power in kVA

80 kVA
(108.77 hp)

Voltage

Max.: 480 V

Min.: 120 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Width

2,250 mm
(89 in)

Height

1,538 mm
(61 in)

Weight

1,004 kg
(2,213.44 lb)

Description

Open generator with following specifications: Frame: - Heavy duty fabricated welded base plate with high quality steel UNI S235 JR - Heavy duty, bell type, rubber anti-vibration mountings - Dedicated area to make easier the electrical connection to the load - Easy access to fuel refilling - Feet and four lifting holes on the base Muffler: - Industrial type - With aluminum coating Control Panel: - Self-standing control panel tower made with metal structure and components to grant IP65 protection, easily removable for maintenance - Control panel is divided in two independent and insulated boxes separating Controls (Controller and numbered terminal board) from Power connection (circuit breaker and cable inlet) - External dedicated area to make easier the electrical connection to the load - Power connection between circuit breaker and alternator made with high resistance neoprene cables (H07RNF) and using cable glands for waterproof connections All units and components are prototype tested, factory build and production tested. A specific control procedure during the several stages of production ensures long life and reliability
