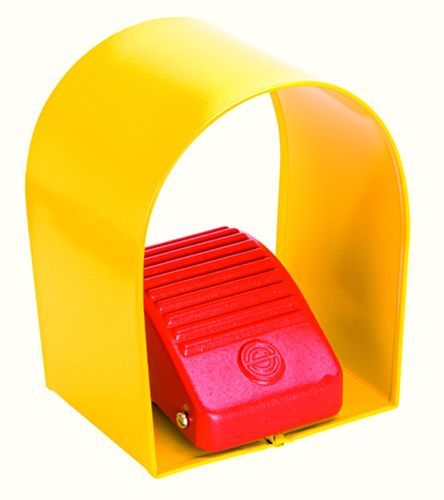

Control foot switch KEFBMelectricmechanicalmomentary
Add to favorites
Compare this product
Characteristics
- Function
- control
- Technology
- electric, mechanical
- Type
- single pedal, momentary
- Other characteristics
- with cover
Description
• Electrical Life :
250.000 switching cycles
500.000 switching cycles
500.000 switching cycles at V/5 A (AC15)
250.000 switching cycles at 250 V/16(10) A
1.000.000 switching cycles at 250 V/10(6) A
1.000.000 switching cycles
• Mechanical Life : 1.000.000 switching cycles
• Color Enclosure : red
• Storage Temperature : -50 ... 70°C
• Switching Function : Momentary function
• Rated Operating Voltage :
24V DC IEC/EN 60947-5-1
250V DC IEC/EN 60947-5-1
250V AC IEC/EN 60947-5-1
400V AC IEC/EN 60947-5-1
60V DC IEC/EN 60947-5-1
400V DC IEC/EN 60947-5-1
125V DC IEC/EN 60947-5-1
• Class of Protection : II (protective insulation)
• Contact Type : 1NC + 1NO
• Series : Pedal switch KEF
• Connection Type : screw connections
• Operating Temperature : -30 ... 70°C
• Protection Class Front : IP00
• Approbations : CE , UKCA
• Operating Travel : 6mm
• Illumination : No
