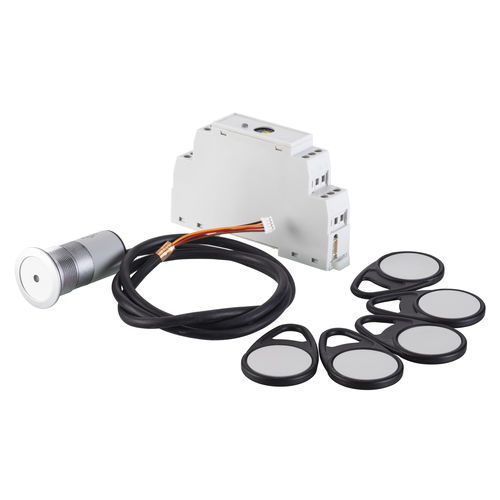

RFID tunnel reader RFID TMS

The RFID TMS is an independent RFID system which is designed for a simple and fast integration into existing operating environments. It does not require special connections like e.g. USB or RS232 and the outputs can be accessed directly. The system consists of a reading/writing unit, an evaluation electronics, transponders and a management software which is protected by a customised serial number. That means that the evaluation electronics can only communicate with the appropriate transponders and those transponders can only be programmed with the appropriate management software. Data is being read and transferred in regular intervals. For RFID TMS the validation of transponders is done via the evaluation electronics, they have not to be programmed via an external control. If the reading/writing unit detects a transponder with a valid serial number, the data of the transponder is processed by the evaluation electronics and the corresponding outputs are activated. For RFID TMS there are two variants, TMS_TRA and TMS_TCA. Both systems need the SKS_TMS_xxxxxx for installation and management. In case customer wants to use the system without software, Schlegel can also programme the transponders on request.
