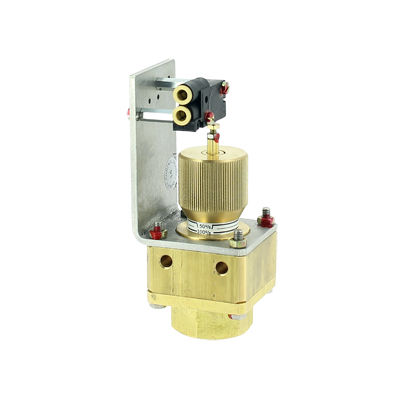

Diaphragm pressure switch C series
relativeNOflange

diaphragm pressure switch
diaphragm pressure switch
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Pressure type
relative
Contact type
NO
Mounting
flange
Fluid
for gas
Material
stainless steel, brass
Protection level
ATEX, IP20
Pressure range

Max.: 20 bar
(290.08 psi)

Min.: -1 bar
(-14.5 psi)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

These pressure switches have been specially designed for dedicated applications such as gas mixers and essentially mounted in cabinets. Tightness: IP20 Sensing element: » NBR, FKM or EPDM diaphragm Function : 1 pneumatic cell NO or NF Options: » Constructional safety for ATEX areas by cabinet integration Uses These pressure switches have been specially designed for dedicated applications such as gas mixers and essentially mounted in cabinets. Its design allows this pressure switch to be used for installations in hazardous area. Technical data Plate Stainless steel Tightness IP 20 Mechanism Zinc steel / brass Sensing element NBR diaphragm (as option) FKM or EPDM Flange Brass Piloting pressure (filtration : 5 μm max.) NO, NF: 1.5 to 8 bar YNF: 0 to 10 bar Piloting Fluid Air, nitrogen, etc. Exhaust NO, NF - non collected YNF - cell without leakage * Application for rare or dangerous gases Process connection¼’’ GF (others: on request) Pneumatic connectionNO, NF, flexible tube, ext. Ø 4 mm YNF – M5 threading Ambient T°-10 to 60°C Piloting fluid T°-10 to 60°C Mounting Direct or panel mounting by 2 fixing holes Ø 5.5 mm
