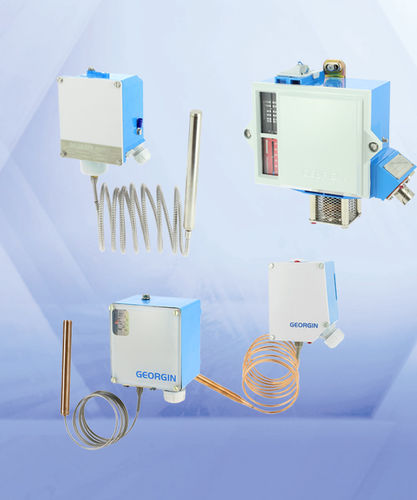

Gas expansion temperature switch G series
SPDTinsertionstainless steel

gas expansion temperature switch
gas expansion temperature switch
gas expansion temperature switch
gas expansion temperature switch
Add to favorites
Compare this product


Characteristics

Heating technology
gas expansion
Contact type
SPDT
Mounting
insertion
Material
stainless steel
Protection level
explosion-proof, SIL, IP66
Other characteristics
compact
Temperature

Min.: -20 °C
(-4 °F)

Max.: 250 °C
(482 °F)

Description

Version: direct bulb or capillary Case: Composite material Sensing element: Stainless steel or copper bulb and capillary Switch: 1 or 2 change over(SPDT) Options: » Intrinsic Safety » SIL capability TECHNICAL DATA Housing Polyarilamide 50% fiberglass reinforced Protection IP 66 (according to EN60529) External screwszinc steel plated (st.st. as option) Ambient T° -20 to 70°C Storage T° -30 to 80°C Version temperature Relative range -20 to 120°C, 3 ranges available Max. temperature Refer to “range table” Sensor Direct bulb Material Copper Microswitch1 or 2 SPDT Current rating refer to table here after Process connection 3/8’’ BSP M (as standard) (others on request) Electrical connection ISO16 cable glandInternal terminal 3 wires 1.5 mm² Repeatability ≤ 1% range in continuous cycle ATEX VERSION intrinsic safety (as option) Ex ia IIC T6 (-40°C
