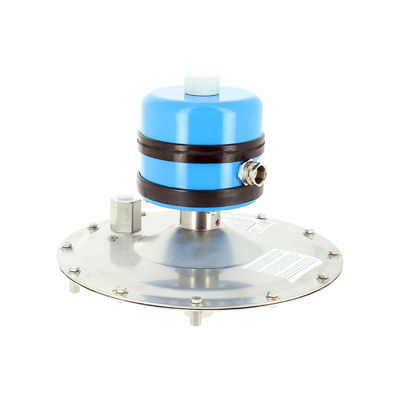

Diaphragm pressure switch (D)MLFK series
differentialrelativeflange

diaphragm pressure switch
diaphragm pressure switch
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Pressure type
differential, relative
Mounting
flange
Fluid
for gas, for air
Material
stainless steel
Protection level
ATEX, intrinsically safe
Other characteristics
low-pressure
Process temperature

Min.: -40 °C (-40 °F)

Max.: 120 °C (248 °F)

Pressure range

Min.: -1.5 mbar (-0.02 psi)

Max.: 2.5 mbar (0.04 psi)

Description

Version: relative and differential pressure Ranges: » From -1.5 to 1 mbar (relative pressure) » From 0 to 2.5 mbar (differential pressure) Case: Coated steel Sensing element: » NBR or FKM diaphragm, stainless steel flange Switch: 1 change over (SPDT) Options: » Intrinsic Safety Uses Ventilations, air or gas filter fouling, unit heater flow, ... Technical data Cover Steel with blue epoxy coating Tightness Standard housing IP20 – (D)MLFK16(D)CX Proof housing IP55 – (D)MLFK16(D)CX51 The ATEX version is automatically with a proof housing Mechanism Zinc plated steel Sensing element Buna N diaphragm Others on request Flange Zinc plated steel Stainless Steel flange on request Microswitch 1 very tight dead band microswitch Current rating Switch nr 16 10A/250VAC // 0.4A/125VDC Switch nr 16D 0.1 A/24VDC Accuracy <10% in constant cycle and temperature Process connection ½" BSPM Others on request Electrical connection On the switch (see backside) Electrical output IP20 version Cable hole IP55 version Nickel plated brass cable gland (Ø5.5-9.5mm) Ambient T° -10 to 60°C Process T° -40 to 120°C Storage T° -20 to 70°C
