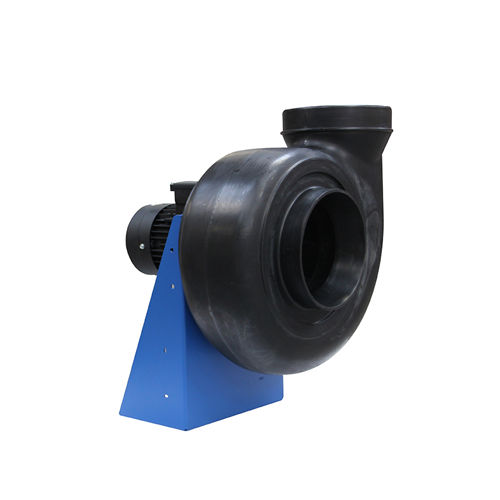

Centrifugal fan RPV/LPV/MPV
extractionplasticsteel

centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Configuration
centrifugal
Function
extraction
Material
plastic, steel, PP
Other characteristics
anti-corrosion, ATEX, for laboratories, for harsh environments, energy-saving, energy-efficient, low power consumption, backward curved, explosion-proof, industrial, for automotive applications, low-noise
Air flow

Max.: 6,720 m³/h
(237,314.56 ft³/h)

Min.: 25 m³/h
(882.867 ft³/h)

Rotational speed

Max.: 2,800 rpm
(17,593 rad.min-1)

Min.: 920 rpm
(5,781 rad.min-1)

Description

GEOVENT Plastic Fans type RPV, LPV and MPV is a serie of acid proof plastic, designed for for extraction of gases and fumes from highly corrosive processes. For instance lab fume hoods, battery rooms, washers and chemical processes etc. The fans are cast in polypropylene/polyethylene, which provides maximum protection against acid and corrosion. Air Flows up to 6.750 m³/h and static pressure op to 1.700 Pa. Construction: - The housing is cast in Polypropylene. - The wheel is cast I Polypropylene with backward curved blades. - The motor console is made of powder-coated sheet metal. - Nuts and bolts are in stainless steel. - The motor is a direct drive asynchronous motor. Default is 3-phases (3x400V 50Hz), but is available in 1x230V 50Hz. - The Plastic Fan is available in ATEX for Zone 2/22 in accordance with directive 2014/34/EU, earlier 94/9/EC. - By default, the fan is supplied as RD0. Upon request, it is available as LG in the positions 315°, 0° and 45°. - Temperature of the extracted air up to 70°C.
