Extraction fan LEF/MEF series

high-pressureATEXlow-noise

LEX/MEX ATEX fanThe LEX/MEX ATEX fans are high-efficiency centrifugal fans designed for safe ventilation in ATEX zones 1 and 2/22. Featuring backward-curved, self-cleaning impellers, it ensures reliable operation in explosive environments. Available in acid-proof stainless steel, it is ideal for industrial processes, gas ships, and oil rigs. Compatible with frequency inverters depending on the ATEX zone and motor type for optimal energy efficiency and speed control.
What do you get?

• ATEX-compliant centrifugal fan for safe operation in zones 1 and 2/22.
• High-efficiency, backward-curved impellers for optimal airflow and energy savings.
• Available in acid-proof stainless steel for highly corrosive environments.
• Compatible with frequency inverters for precise speed control.
• Robust, fully galvanised construction with vibration absorbers and outlet bracket.
• Suitable for process and comfort ventilation in explosive atmospheres.
• Designed for seamless integration with Geovent automatics for enhanced performance.

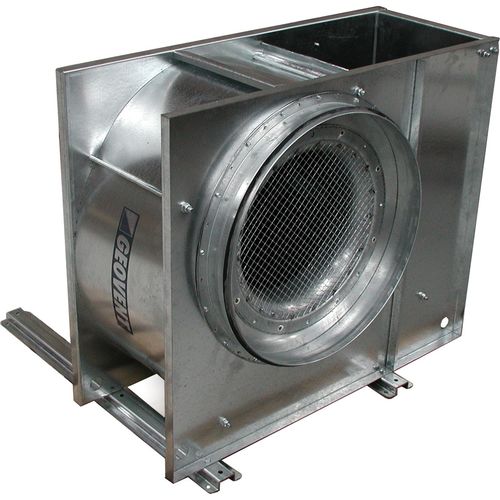

The LEF-MEF centrifugal fan is designed for demanding industrial extraction and comfort ventilation applications. With a backward-curving, self-cleaning B-wheel and a direct-drive flange motor, it delivers high efficiency of up to 87%, ensuring optimal energy usage and performance. Its robust construction from 100% galvanised steel provides excellent corrosion resistance, making it suitable for outdoor installations on roofs or walls.

This versatile fan is ideal for extracting welding fumes, dust, exhaust gases, and other industrial pollutants. It supports speed control, including PID and constant pressure regulation, making it adaptable for various airflow requirements. Additionally, the fan’s high efficiency makes it suitable for energy-saving operations, such as when integrated with frequency inverters.

A complete range of accessories is available including flexible connections, rain cover, motor breaker, pressure monitors, and sound boxes. It is also available in an ATEX version (LEX/MEX) with an EExE motor, suitable for use in potentially explosive environments. For specialised requirements, the fan can be customised with stainless steel (ANSI 316L) for corrosive fumes, built-in frequency inverters, two-speed motors, or high-temperature versions.

Standard features includes fan support with vibration absorbers, a galvanised inlet nozzle with a net, and a clamp for mounting the outlet flange. Its durable design ensures reliable operation even in harsh conditions, making the LEF-MEF fan a flexible and efficient choice for industrial extraction and ventilation needs.
