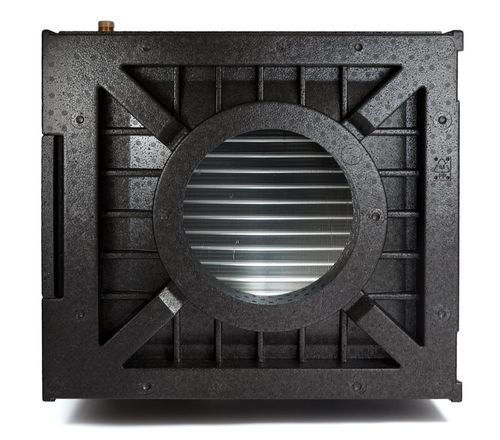

Glycol water cooler-heater AirHC1000

for domestic applicationsfor air conditioningfor industrial operation

Product Overview
The GHT AirHC1000 is a compact EPP-insulated duct post-heater and cooler engineered for ventilation systems with airflows up to 1000 m³/h (588 CFM). Suitable for residential, commercial and Controlled Environment Agriculture (CEA) applications. Designed for flexible installation downstream of HRV/ERV units or as a standalone supply air device, and compatible with water or glycol heat transfer media for sub-freezing climates.

Key Features

• Capacity: Up to 19 kW heating and 9 kW cooling.
• Wide operating range: EPP-insulated housing enabling reliable operation from -30°C to +60°C (-22°F to +140°F).
• Dual filter slots: Two integrated compartments for filters, removing the need for external filter boxes.
• Flexible integration: Install as a post-heater/cooler after HRV/ERV, in a supply air duct with a fan, or within a glycol-based loop for freeze protection.

Installation & Drainage
Duct connection: DN250 (Ø250 mm). Condensate drain connection: 5/4" (Ø63 mm) located below the unit. Compact footprint for easy mounting in supply ductwork.

Notes on Use
In climates with regular winter temperatures below 0°C (32°F) and where no HRV is present, use a glycol (antifreeze) solution to protect the internal heat exchanger from freezing. Glycol operation preserves reliability during prolonged low-temperature periods and minimizes maintenance risks.

Technical Specifications

• Model: AirHC1000
• Maximum airflow: 1000 m³/h (588 CFM)
• Duct connection: DN250 (Ø250 mm, circular)
• Heating / Cooling capacity: Up to 19 kW / Up to 9 kW
• Heat transfer medium: Water or glycol solution
• Operating temperature range: -30°C to +60°C (-22°F to +140°F)
• Insulation / Housing: Moisture-resistant EPP
• Filter integration: Two compartments for filters
• Condensate connection: 5/4" (Ø63 mm), below the unit
• Dimensions (H x W x D): 530 x 390 x 590 mm
• Weight: 8 kg (17.63 lbs)
