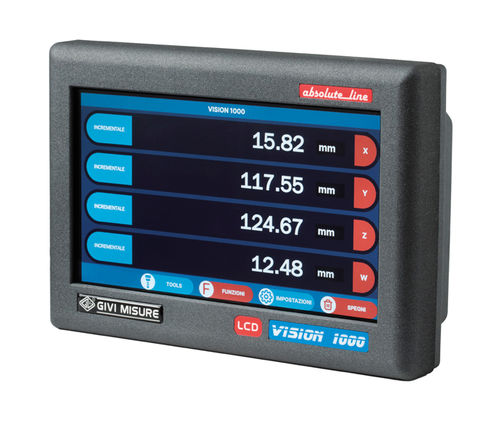

HMI with touch screen VI 1000flush-mountpanel mountTFT LCD
Add to favorites
Compare this product
Characteristics
- Interface
- with touch screen
- Mounting
- flush-mount, panel mount
- Screen type
- TFT LCD, color LCD
- Connectivity
- RS-232, CAN Bus
- Other characteristics
- compact, 4-axis
- Applications
- for CNC systems
- Screen size
25.7 cm
(10.1 in)
Description
Short description
Models / Accessories (overview)
Main functions
Technical specifications
- Fully touch-screen multiaxis digital readout (DRO) with compact, functional design for absolute and incremental encoder systems.
- Intuitive graphic user interface to assist the operator and simplify access to functions.
- Universal software compatible with a wide range of machine tools.
- 10.1" TFT color touch-screen capable of displaying up to 4 axes.
- Options for panel (flush-mounted) installation and external remote boards.
Models / Accessories (overview)
- VI 1000 - Touch-screen color LCD display
- RB 900 I/O - Digital remote board: up to 8 relay outputs
- RB 900 CSS - Analog remote board: constant surface speed output
Main functions
- Absolute position display
- Midpoint / center calculation
- Absolute or incremental counting
- Scale zero reference
- Axis reset
- Position preset
- mm/inch conversion
- Constant step
- Axis coupling
- Round flange function
- Radius/diameter conversion
- Scale factor
- Linear correction
- Taper calculation
- Material weight calculation
- Speed calculation
- Thread calculation
- Axes speed display
- Tool management
- Origins management
- Inversion of counting direction
- Variable resolution
- Disable reference
- Disable axes
- Language selection
- Instrument info
Technical specifications
- Display: 10.1" TFT color touch-screen; up to 4 axes visible.
- Input signals: absolute (SSI – BiSS unidirectional) and incremental encoders.
- Absolute signal standard: RS-422 (Clock+, Clock-, Data+, Data-).
- Resolution: up to 0.01 μm.
- Reference: reading of coded reference indexes; scale zero reference and axis reset/preset functions.
- Interfaces: CAN interface and RS-232 serial output.
- Remote board support: digital remote board (up to 8 relay outputs) or analog remote board (constant surface speed).
- Optional: flush-mounted (panel) version available.
- Software: universal machine-tool software with intuitive graphical UI and multiple dedicated functions for conversions, calculations and axis management.
