optical spectroradiometer / for production / laboratory / for LED lighting
GL Spectis 6.0

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
optical spectroradiometer / for production / laboratory / for LED lighting optical spectroradiometer / for production / laboratory / for LED lighting - GL Spectis 6.0
{{requestButtons}}

Characteristics

  • Type:

    optical

  • Other characteristics:

    for production

  • Domain:

    laboratory, for LED lighting

  • Wavelength:

    Min.: 200 nm

    Max.: 1,050 nm

Description

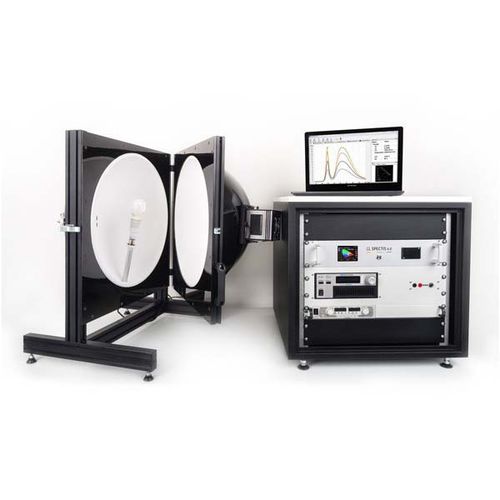

The GL Spectis 6.0 LED spectroradiometer, expands on our family of high-end light spectrometers optimized specifically for production and large laboratory setups for the high speed measurement of SSL products (IESNA LM-79-08), LED wafers, large street lamps and luminaries in accordance with the new global standard CIE S025 standard.

Whenever you need to build a complex LED test and measurement setup, this rack mounted spectrometer module is ready. Easily connect with other devices like power supplies, TEC controls, power meters and other peripherals of the instrument system for LED lighting laboratory or production testing.


Very High Resolution

GL Spectis 6.0 LED spectroradiometer uses high resolution optical system covering a very wide spectral range with single sensor and diffraction grating. Average optical solution is 3,5 nm and data point interval 0,5nm which makes this a very universal instrument for different types of measurement.

Choose your Connection

Choose the best way to connect and control the system based on project or application requirements. USB or TCP/IP communication can be used for direct data transfer. Additional trigger interface is available for fast testing purposes.


Multiple Integrations

Specially designed entrance connector provides high stability and precision for fiber optic connections. Integrating spheres and various options for other optical probes for different types of systems are available.
