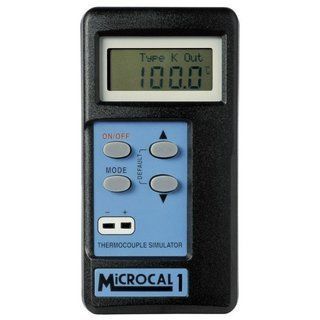

Industrial simulator Microcal 1

for laboratory applicationsthermocouplecustom

Description
The Microcal 1 is a handheld thermocouple simulator designed to generate selectable simulated temperatures for testing thermocouple inputs on temperature recorders, programmers and controllers. It supports types K, J, T, R, N, S and E and removes the need for external conversion tables or complex ambient compensation procedures.

Applications
Used for on-site verification and recalibration of temperature measurement and control instrumentation in manufacturing, laboratory and field service environments. Ideal for routine maintenance, quality control checks and pre-shipment verification of devices with thermocouple inputs.

Features

• Custom 10 mm LCD with alphanumeric prompt line to guide parameter changes
• Selectable settings: auto power-off (enable/disable), cold junction compensation (internal/external), display contrast adjustment
• Standard 1 metre PVC insulated Type K thermocouple lead with miniature connector supplied
• Supplied with UKAS Certificate of Calibration showing deviations at calibration points
• Optional lead set available (sold separately): seven 1 m PVC insulated leads, one for each thermocouple type K, J, T, R, N, S and E, each with two miniature thermocouple plugs

Optional lead set ranges

• Thermocouple type K: -200 °C to 1372 °C
• Thermocouple type J: -200 °C to 1200 °C
• Thermocouple type T: -200 °C to 400 °C
• Thermocouple type R: 0 °C to 1768 °C
• Thermocouple type N: -200 °C to 1300 °C
• Thermocouple type S: 0 °C to 768 °C
• Thermocouple type E: -140 °C to 1000 °C

Technical specifications

• Model name: Microcal 1
• Product code: GHT2200
• SKU: ght2200
• Product ID: 364
• Variant ID: 7
• Product type: variable
• Includes VAT: 0 (price shown exclusive of VAT)
• Standard lead: 1 metre PVC insulated Type K thermocouple lead with miniature connector
• Display: custom 10 mm LCD with alphanumeric prompt line
• Selectable settings: auto power off (enable/disable), cold junction compensation (internal/external), display contrast adjustment
• Calibration: supplied with UKAS Certificate of Calibration
