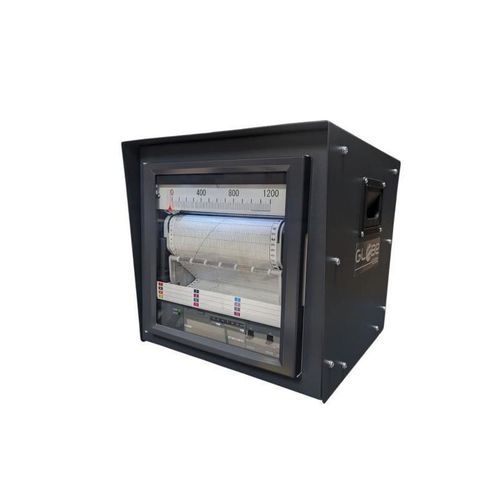

Analog recorder Chino EH3127-001

temperatureindustrial12-channel

Product overview
An analogue 12-point temperature chart recorder designed for recording pre- and post-weld heat treatment processes up to 1200°C. Simple to operate and supplied in a powder-coated mild steel enclosure suitable for typical site conditions. Compatible with Globe mobile power source transformer heat treatment units.

Applications

• Recording pre- and post-weld heat treatment processes up to 1200°C
• Use in conjunction with mobile power source transformer heat treatment units

Options

• Voltage options: 110 V, 240 V

Product identification

• Model / Reference: EH3127-001
• Product code: GHT2001
• SKU: ght2001

Technical specifications

• Type: Analogue temperature chart recorder (12-point)
• Maximum recorded temperature (application): up to 1200°C
• Construction: Powder-coated mild steel enclosure
• Intended use: Heat treatment industry; pre- and post-weld processes
• Compatibility: Designed for use with Globe range of mobile power source transformer heat treatment units
• Available variants: 110 V, 240 V
