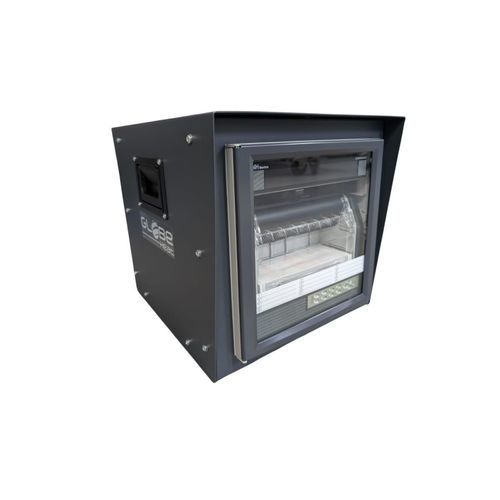

Hybrid recorder Chino AH4712-EOA-NNN

temperatureindustrialnetwork

Overview
The Chino AH4712-EOA-NNN is a hybrid analogue/digital 12-channel temperature recorder. The LCD displays channel values single-channel or multi-channel, and supports digital readout plus simultaneous bar-graph visualization. The unit records to a paper chart and saves measurement data to an SD card (SD card sold separately). Saved data can be exported as CSV or viewed on a PC using Report Maker software (sold separately). The recorder also supports Ethernet network connection for browser-based or supplied-software monitoring.

Applications
Designed for industrial temperature recording, in particular pre- and post-weld heat treatment monitoring up to 1200 °C. Housed in a powder-coated mild steel case with ergonomic folding handles to withstand normal site conditions.

Features

• Twelve type K thermocouple sockets mounted at the rear
• Chart speeds from 1 to 1500 mm/hour in 1 mm increments
• Chart and scale illumination for low-light viewing
• One EH05035 (0–1200 °C) chart paper supplied as standard
• SD card export (SD card sold separately, GHT 2514) — data export via Report Maker software (sold separately, GHT 2482)
• Ethernet connection for Web Viewer and E-mail alarm notifications (via supplied KIDS software)
• Four alarm types (no relay output)
• Ergonomic folding handles fitted to each side of the case

Data export & connectivity
Prints to paper chart and saves to SD card (SD card sold separately). Exportable as CSV for spreadsheet use and viewable with Report Maker software. Ethernet/network connectivity enables remote monitoring via the supplied software or a standard web browser.

Technical specifications

• Channels: 12 (twelve type K thermocouple sockets)
• Temperature range (with supplied chart paper): 0–1200 °C (EH05035 supplied)
• Chart speeds: 1 to 1500 mm/hour in 1 mm increments
• Display: Hybrid analogue/digital with LCD; supports single-channel, multi-channel and bar-graph display
• Data storage: SD card (sold separately) — exportable as CSV
• PC software: Report Maker (sold separately) for data viewing and export
• Network: Ethernet connection for Web Viewer and E-mail alarm notifications (via supplied software)
• Alarm: 4 alarm types (no relay output)
• Construction: Powder-coated mild steel case; ergonomic folding handles on each side
• Typical application: Pre- and post-weld heat treatment recording up to 1200 °C
