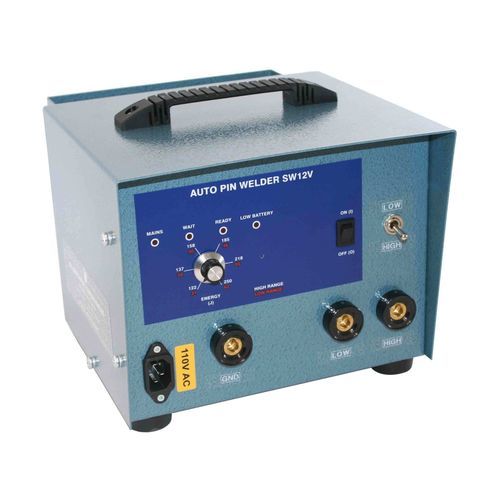

Capacitor discharge micro welder SW12V

automaticstandalone115V single phase

Description
The SW12V auto pin welder is a capacitance-discharge spot welding unit designed to attach pins and wires to workpieces. It provides two selectable energy ranges to handle a variety of pin and wire sizes and can be powered from a rechargeable battery or from mains 110V AC (optional 230V AC).

Applications

• Attaching thermal insulation pins where banding wire or steel tape cannot be used.
• Welding thermocouple wires using the lower energy range.
• Field and workshop use requiring portable, battery-capable spot welding.

Features

• Operation: select required energy and switch On; unit charges until 'Ready' and performs an automatic spot weld on contact, preceded by three short beeps and one long beep; unit then auto-recharges for the next weld.
• Hands-free operation with audible count-in to auto-weld and automatic sleep mode after ~5 minutes inactivity.
• Two selectable energy ranges: 30–60 J and 125–250 J.
• Rechargeable battery with low-battery LED indicator and auto shut-off to conserve charge.
• Rugged floor-standing case with hard rubber feet and integrated tool storage tray.
• Supplied accessories: 2 m welding cables, welding return magnet, supply lead, and interchangeable pliers.

Technical specifications

• Model: SW12V
• Product code / group: GHT4005
• SKU: ght4005
• Unit type: capacitance-discharge pin/wire spot welder
• Power options: rechargeable battery; mains 110V AC; optional 230V AC
• Selectable energy ranges: 30–60 J and 125–250 J
• Accessories supplied: 2 m welding cables, welding return magnet, supply lead, interchangeable pliers
• Operation modes: hands-free auto-weld with audible count-in; auto recharge cycle; sleep mode after approximately 5 minutes inactivity
• Form factor: rugged cased floor-standing unit with tool tray and hard rubber feet
• Variant options: 110V and 240V
