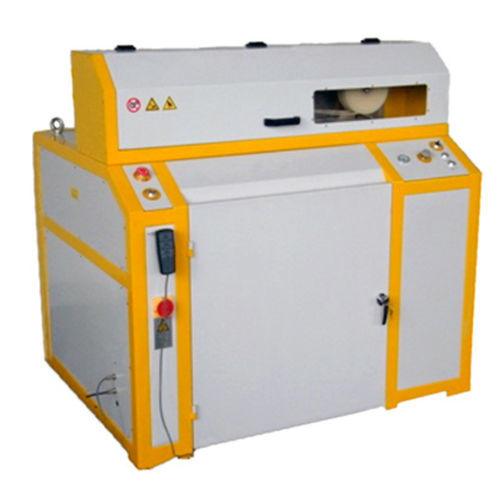

Cable unwinder PF-6S

coilmotorized

The motorized PREFEEDER PF-6S complete with reserve cable reservoir is ideal to be positioned in line with CUTTING AND STRIPPING MACHINES and CUTTING MACHINES, allowing high speeds and accelerations to be supported. The machine creates an accumulation of available cable even before the coil starts its rotation through a group of mobile compensator pulleys that automatically adjusts the unwinding speed. Quick loading and electromechanical lifting of the reel. The MOTORIZED PREFEEDER PF-6S is supplied complete with safety guards and accident prevention safety devices and instruction manual. Technical features: ALIMENTATION - Triphases 400 V 50/60 Hz ABSORBMENT - 2200 W COIL LENGTH - 600 mm COIL MAX WEIGHT - 400 Kg. WEIGHT - 250 Kg. DIMENSIONS - 1.400 x 1.100 x 1.425 mm (L x P x H)
