Coil unwinder FA800 FAC800

cablemotorized

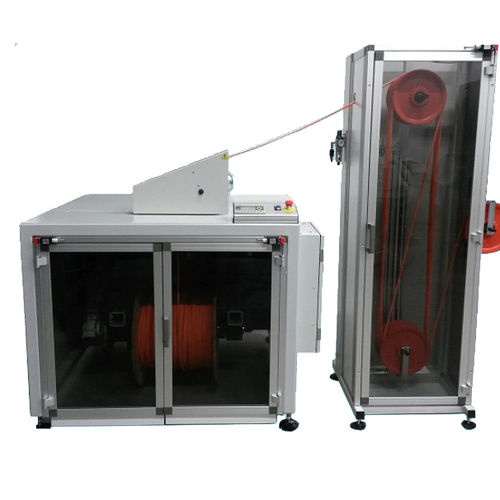

The PREFEEDER FA800 FAC800 machine is a COIL UNITS produced in Italy and complete with CE certification. Suitable for DRAWING CABLE COILS with max outer diameter of 12 mm workable CABLE, 400 mm to 800 mm outer diameter CABLE COILS. The loading of the COIL is quick and easy, thanks to the two motorized bobbin gripping arms and COIL-HANDLE lifting arms. The PREFEEDER FA800 FAC800 has a system to detect the position of the pulleys, on which to select the correct speed of UNWIND, so that the operator no longer has to adjust the speed of the PREFEEDER when the COIL begins to empty. A unique feature of this PREFEEDER is that it can be aligned with the 90 ° compensator compared to the COIL loading, or in line. Technical features: DIMENSIONS - 1300 X 1300 X 1020 (LxPxH) WEIGHT - 500 Kg ALIMENTATION - 230 V 50-60HZ (380 V) ABSORBMENT - 2 Kw
