Hydraulic press A series
motorizedformingautomatic

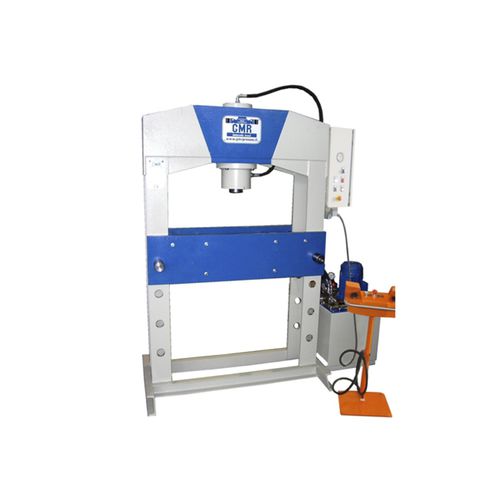

Hydraulic press - A series - GMR di Maffi Raimondo Srl - motorized / forming / automatic
Hydraulic press - A series - GMR di Maffi Raimondo Srl - motorized / forming / automatic
Add to favorites
Compare this product

Characteristics

Operation
hydraulic, motorized
Function
forming
Control
automatic
Force

100 tf, 150 tf, 200 tf, 300 tf

Opening

Min.: 850 mm
(33 in)

Max.: 1,500 mm
(59 in)

Stroke

180 mm
(7.087 in)

Max. pressure

420 bar
(6,092 psi)

Weight

Min.: 310 kg
(683 lb)

Max.: 2,800 kg
(6,173 lb)

310 kg
(683 lb)

Overall length

Min.: 1,300 mm
(51 in)

Max.: 2,230 mm
(88 in)

1,300 mm
(51 in)

Overall width

Min.: 700 mm
(28 in)

Max.: 900 mm
(35 in)

700 mm
(28 in)

Overall height

Min.: 1,950 mm
(77 in)

Max.: 2,350 mm
(93 in)

1,950 mm
(77 in)

Description

Hydraulic press with double speed and automatic exchange electrodistributor with automatic operation two-hand control and contemporaneity button panel - Mould support plate with "T" slots - Extractor cylinder hydraulic press with double engine speed 'and automatic exchange solenoid with automatic functioning bimanual panel control and contemporary
