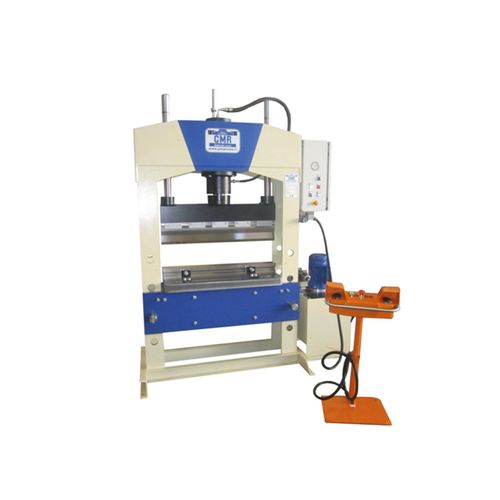

Hydraulic press PL-A seriesformingblankingfor molding
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, blanking, for molding
- Control
- automatic
- Force
980.7 kN, 1,471 kN
- Opening
1,000 mm
(39 in)- Stroke
Min.: 300 mm
(11.811 in)Max.: 400 mm
(15.748 in)- Max. pressure
400 bar
(5,802 psi)- Working speed
Min.: 28 mm/s
Max.: 28 mm/s
- Weight
Min.: 1,500 kg
(3,307 lb)Max.: 2,500 kg
(5,512 lb)- Overall length
Min.: 1,800 mm
(71 in)Max.: 2,000 mm
(79 in)- Overall width
900 mm
(35 in)- Overall height
Min.: 2,320 mm
(91 in)Max.: 2,600 mm
(102 in)
Description
Hydraulic press with double speed and automatic exchange complete with folding blade and 4-sided prism electrodistributor with automatic operation two-hand control and contemporaneity button panel
- Mould support plate with "T" slots
- Extractor cylinder
hydraulic press with double engine speed 'and automatic exchange complete with blade and bending prism 4 faces solenoid with automatic functioning bimanual panel control and contemporary
