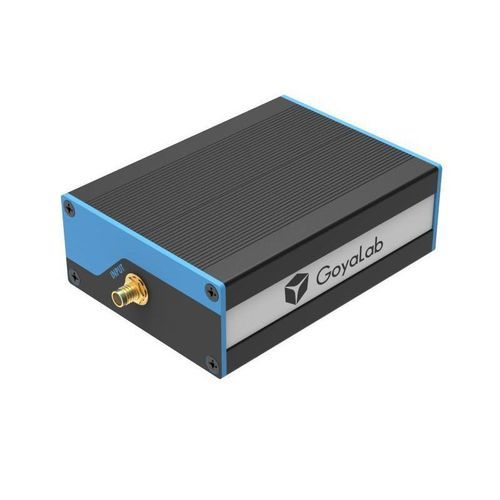

UV-visible mini spectrometer IndiGo OEM UV/Vis

laboratoryfor OEMfor industrial applications

IndiGo OEM UV/Vis is a compact transmission spectrometer designed for measuring emission, absorption, or transmission spectra within the 380 nm to 720 nm range. It is compatible with a wide variety of spectral analysis applications and can be used both in laboratory settings and as an integrated solution for industrial applications. The device's spectral range can be customized from 380 nm to 900 nm, and its spectral resolution (FWHM) can be adjusted from 0.8 nm to 3 nm, depending on the configuration.

Key Features

• Transmission spectrometer for emission, absorption, or transmission spectra
• Standard spectral range: 380 nm – 720 nm (customizable up to 900 nm)
• Spectral resolution (FWHM): configurable between 0.8 nm and 3 nm
• Powered and connected via USB 3.0 (USB-type C)
• Delivered with SpectroLab PC application (Win10 64bits) for spectrum capture and analysis
• Pre-calibrated on the nanometric scale; optional intensity calibration
• SpectroLab allows recalibration on both nanometric (x) and intensity (y) axes
• Applications include chemical analysis, education and research, gemology and jewellery, lighting and filters identification, traceability and authentication, and more

Slit and Resolution Table

• 15µm slit: 380nm – 720nm, <0.9nm optical resolution (FWHM)
• 25µm slit: 380nm – 720nm, <1.5nm optical resolution (FWHM)
• 70µm slit: 380nm – 720nm, <3nm optical resolution (FWHM)

Calibration

• Nanometric axis (x): Fast calibration with a compact fluorescent lamp or scientific calibration with a mercury-argon lamp
• Intensity axis (y): Requires a calibrated lamp (e.g., calibrated halogen lamp); user or manufacturer calibration possible

Applications

• Chemical analysis
• Education and research
• Gemology and jewellery
• Lighting and filters identification
• Traceability and authentication
• Other fields as required

Technical Specifications

• Product type: Compact UV/Vis spectrometer
• Connection: USB 3.0 (USB-type C)
• Software: SpectroLab PC application (Win10 64bits)
• Pre-calibrated: Yes (nanometric scale)
• Optional calibration: Intensity axis
• Slit options: 15µm, 25µm, 70µm
• Wavelength range: 380nm – 720nm (customizable up to 900nm)
• Optical resolution: 0.8nm – 3nm (FWHM, depending on slit)
