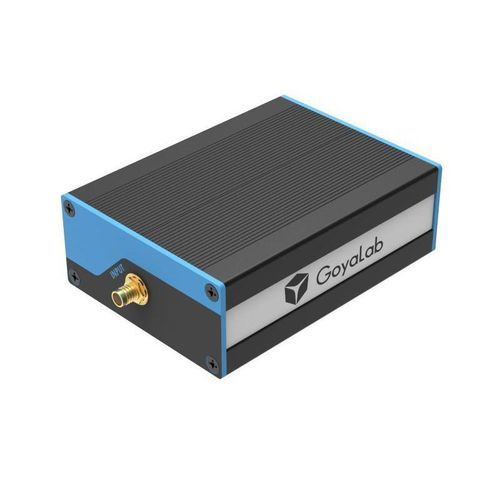

Near-infrared mini spectrometer IndiGo OEM NIR

laboratoryindustrialfor spectroscopy

IndiGo OEM NIR is a compact near infrared spectrometer designed for transmission measurements. It can measure emission, absorption, or transmission spectra from 720nm to 1040nm with an optical resolution of about 2nm (FWHM). This device is compatible with multiple spectral analysis applications and can be used both in laboratories and as an on-board solution for industrial applications. IndiGo OEM NIR is powered and connected via USB 3.0 (USB-type C) and comes with the SpectroLab PC application (Win10 64bits) for capturing and analyzing spectra. The spectrometer comes pre-calibrated on the nanometric scale, with optional intensity calibration. SpectroLab allows recalibration of the IndiGo OEM UV / Vis on both the nanometric axis (x) and the intensity axis (y). For the nanometric axis, fast calibration can be performed with a fluocompact lamp or detailed calibration with a Mercury Argon lamp. For the intensity axis, a calibrated halogen lamp is required with SpectroLab.

Key Features

• Transmission near infrared spectrometer
• Measures emission, absorption, or transmission spectra
• Spectral range: 720nm to 1040nm
• Optical resolution: about 2nm (FWHM)
• Compatible with laboratory and industrial applications
• USB 3.0 (USB-type C) powered and connected
• Includes SpectroLab PC application (Win10 64bits)
• Pre-calibrated on nanometric scale; optional intensity calibration
• Recalibration options via SpectroLab

Main Applications

• Chemical analysis
• Education and research
• Gemology and jewellery
• Lighting and filters identification
• Traceability and authentication
• Other custom applications

Technical Specifications

• Spectral range: 720nm to 1040nm
• Optical resolution: ~2nm (FWHM)
• Connection: USB 3.0 (USB-type C)
• Software: SpectroLab PC application (Win10 64bits)
• Calibration: Pre-calibrated on nanometric scale; intensity calibration optional
