GPM series HDPE/PO Pipe Extrusion Line is mainly used in making the HDPE/PO large diameter pipe. The pipe diameter range: Φ800-1600mm. The maximum ouptut: 2200kg/h.
HDPE/PO Pipe Extrusion Line
Applicable raw material: HDPE, PO, PP, PPB
GPM Large Diameter Pipe Extrusion Line has many advantages:
1. With some sets of extruders co-extrusion can meet the extrusion capacity 1000-2000kg/h.
2. Adopts mold inner chamber air exhausting cooling method, can reduce the inner temperature of pipe, and reduce the phenomenon of vertical melt.
3. The most reasonable vacuum calibration tank and spraying cooling system.
4. 6-16 claws haul-off system, servo control is optional.
5. High precision annular cutting, can multi-group cutting, suitable for super-thick pipe.
6. Meter weight control and thickness control system are optional, save your cost of raw materials.

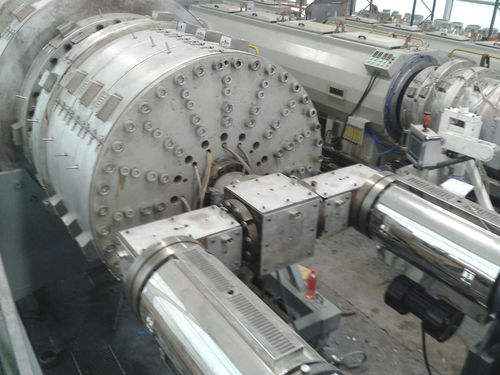

Large Diameter Pipe Co-Extrusion Die
Max diameter: 1600mm
High precision multi flow channel
Sepcial customized mold steel material
Reasonable inner and outer heating design
Meter weight control system
PLC control the feeding speed and weight of the hopper
Stable and even extrusion pressure
Even thickness, save raw materials
The mold core portion suction device
Lower down the inner surface temperature of the pipe mouth mold, reduce the phenomenon of the vertical melt, efficiently shorten the cooling length.
The hot air from the suction can do the pre treatment for drying the PE material, save the electricity cost.
