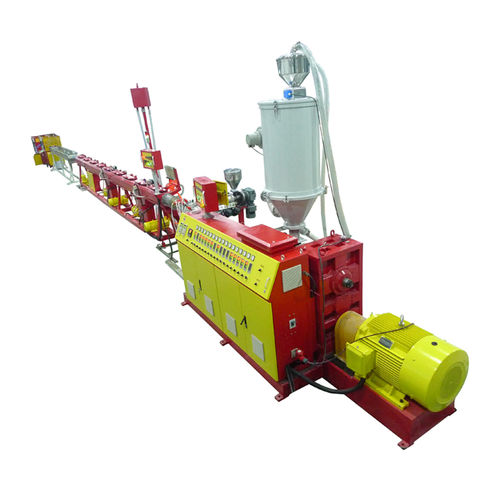

Tube extrusion line GWG63 series

for thermoplastics

GPM series PE/PPR High-speed Pipe Extrusion Line is mainly used in making the 20-63 pipe in high speed, for the 20mm pipe the speed can be 30m/min PE/PPR High-speed Pipe Extrusion Line GPM series PE/PPR High-speed Pipe Extrusion Line is mainly used in making the 20-63 pipe in high speed, for the 20mm pipe the speed can be 30m/min The consist of line 1. Vacuum feeding 2. Hopper dryer 3. Single screw extruder 4. Color string extruder 5. Co-extrusion mould 6. Calibrator 7. Spray vacuum calibration tank 8. Spray cooling water tank 9. Haul-off machine 10. No dust cutter; planetary cutter 11. Pipe Stacker or winding machine PP/PPR Pipe Extrusion Line 1) High output, can be improved 30-50% at the same main motor power condition. 2) High production line speed, for 20mm pipe the line speed can be 30m/min 3) Haul-off machine and cutter can be servo control. 4) Optional equipment automatic weighing measurement and thickness control system.
