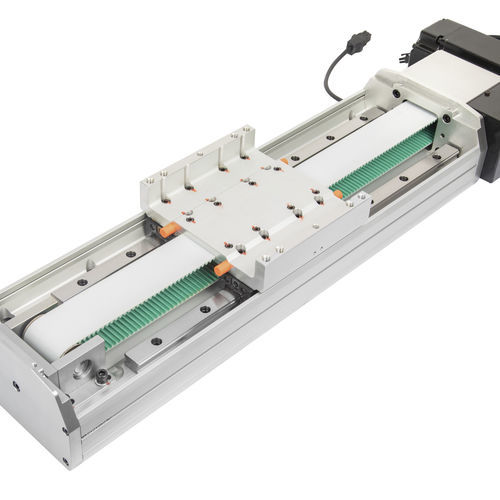

Belt-drive linear module JTB10aluminum profileguidegantry
Add to favorites
Compare this product
Characteristics
- Type
- belt-drive
- Features
- aluminum profile, guide, gantry
- Number of axes
- multi-axis, single-axis
- Other characteristics
- compact, modular, for the food industry, for the medical sector, with cover, open frame, double support, for welding applications
- Stroke
2,550 mm, 3,040 mm
(100.394 in, 119.685 in)- Linear speed
Min.: 0 m/s
(0 ft/s)Max.: 2 m/s
(6.6 ft/s)
Description
Features:high speed;Long stroke
Application Scenarios:Long-distance/ high-speed /point-to-point transporting
Suitable Industries:packaging food/ solar energy equipment/TFT-LCD liquid crystal panel
Repeatability ±0.04mm
Maximum speed - 2000mm/s
Rated thrust- 174N
Maximum payload- Horizontal:15kg/Vertical:5kg
AC servo motor output- 400W
Core Components- High rigidity linear guide, Ball screw, Home sensor, Coupling
Material- Aluminum/Alloy steel
