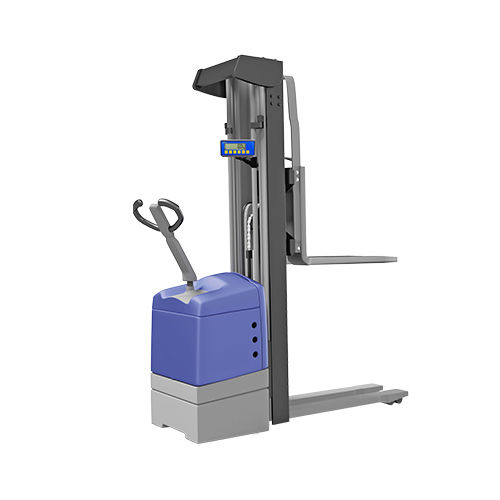

Electric stacker truck ST6

walk-behindwith platformscale

ELECTRIC STACKER TRUCK ST6 Accuracy ±0,1% of the applied load Almost all common electric electric stacker trucks in drawbar design or with platform are to be equipped with an integrated weighing system. The vehicles must be delivered to our factory for conversion. The load cells are integrated in the wheel arms and a weighing shoe is mounted. The electric stacker trucks can also be equipped with a hydraulic weighing system. FEATURES ■ Installation of 6 (verifiable legal for trade) load cells ■ The overall height of the wheel arms increases by approx. 6 mm (stacker truck calibrated approx. 8 mm) ■ The load is approx. 50 mm further forward (front dimension) ■ Signal transmission via mast cable in the mast to the indicator ■ All welding works certified according to ISO 3834-2 ■ Legal for trade version is delivered including class III certificate OPTIONS ■ Printer and data transmission ■ Indicator with numeric keypad and special functions (R420) ■ RS 232 interface incl. Connection cable and Sub-D connector ■ Version with stainless steel shoes, cold store version
