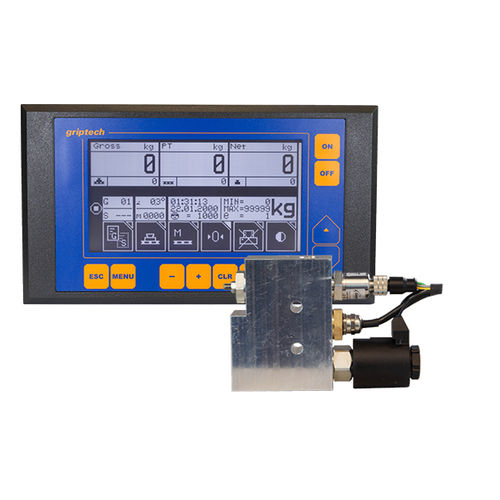

On-board weighing system TC2000-S "SEXY"

TC2000-S "SEXY" Specially for warehouse trucks (± 0.2%) - without return hose to the tank Very stable and high-quality weighing system that has been specially developed for warehouse trucks. The best weighing result is guaranteed in combination with the TC indicator. This system has no influence on the capacity of the truck and the load center point and can be used in combination with attachments. The weighing components are built-in protected on the lift truck and are insensitive to overloading and impact forces and suitable for intensive applications. The measuring block is very compact and is built in the main line to the lifting cylinder and without return line to the tank. Suitable for capacities up to 2,500 kg. WEIGHING PROCEDURE Lift the load to a height marked on the mast. The system is activated by pressing a button on the indicator and the fork carriage is lowered by the operator via the usual controls. The speed is controlled via the measuring block. The weight is now calculated and appears in the display. FEATURES ■ Indicator TC ■ Lowering can always be interrupted ■ High and stable weighing accuracy ■ Weight from min. 80 kg ■ Components insensitive to impact forces and vibrations ■ Easy installation without return pipe to tank ■ Keine Sensoren direkt am Hubgerüst ■ Integrated inverter for supply voltage 12-80 volts ■ Protected against peak voltages ■ Optional indicator in stainless steel housing ■ Optional with ATEX certificate ■ Options such as printer and data transfer
