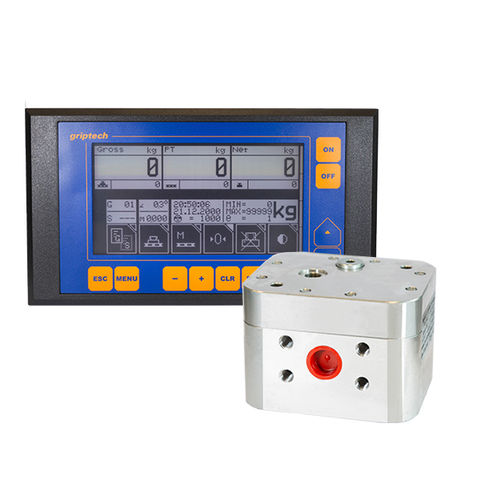

On-board weighing system TC3000

TC3000 Accuracy ± 0.1% of the capacity for lift trucks from 10 t. This system is the high-quality alternative to heavy-duty forklifts from 10,000 kg capacity. The weighing method with the high-quality BMD (Balanced Weight Determination) software on the TC indicator offers the best accuracy and is also classified as calibration according to class Y (a) with 1150 divisions. Suitable for a standard mast without a freelift cylinder. This system has no influence on the capacity of the truck and is independent of the load center point and can be used in combination with attachments. The weighing components are mounted and protected on the forklift truck and are insensitive to overloads and impact forces. The tilt sensor would be mounted on the mast ensures a tilt compensation of the weighing. WEIGHING PROCEDURE Lift the weight to a height marked on the mast. The system is activated by pressing a button on the indicator and operator moves upwards and then downwards through normal operation. The driver must keep the speed within certain tolerances. Through this movement in two directions the friction factors in the calculation and the weight appers on the Display. FEATURES ■ Indicator TC ■ High weighing accuracy ± 0.1% and reliable ■ For forklifts with a capacity from 10t up to 100t ■ Tilt compensation sensor on the mast ■ Components insensitive to impact forces and vibrations ■ Mounting with magnetic tape on the mast for speed determination ■ Integrated converter for supply voltage 12-80 volts (calibrated to 48 volts) ■ Protected against peak voltages ■ Optional indicator in stainless steel housing ■ Optional with ATEX certificate
