Hinged belt conveyor

chaincurvedtransporting

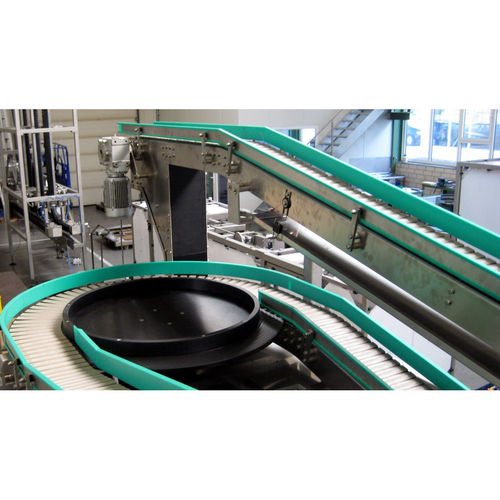

The Gronemeyer serpentine conveyor has stood the test of time for transporting general cargo vertically. The open construction prevents dirt deposits. Common hinged belt chains and drive engines are used. The chain is optionally equipped with rubberised elements so that large gradient angles can be overcome. The drives are delivered as slip-on gears or with chain drive. The modular construction allows them to be re-used later for a new conveyor path. By connecting a serpentine conveyor that conveys upward and one that conveys downward, the machine can be used as a storage system. Technical data -Conveyor body material: stainless steel -Gradient angle: up to 6° -Chain widths: 82.5 mm, 114.3 mm, 190.5 mm -Conveying speed: up to 50 m/min -Product weight: up to 5 kg Optional equipment -Moving deflecting pulleys -Product guides,design depending on product -Supports to stabilize the conveyor systems at the desired conveying height -accessories: sensors, stoppers, etc.
