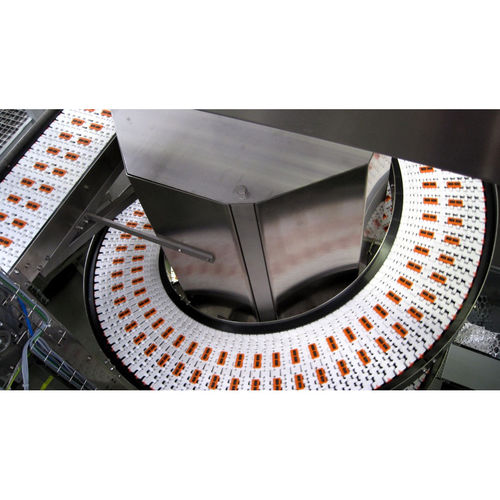

Spiral conveyor

chaintransporting

The Gronemeyer spiral conveyor has stood the test of time for transporting differently-sized and -shaped products vertically. The open construction prevents dirt deposits. Common drive engines are used. Here your requests can be taken into account. The drives are delivered as slip-on gears. The mat chain is equipped with rubberised elements so that large gradient angles can be overcome. Technical data: -Conveyor body material: stainless steel -Difference in height when transporting upward: up to 5 m -Difference in height when transporting upward: up to 7 m -Chain widths: 190.5 mm, 304.8 mm, 381.0 mm, 457.2 mm -3 configurations: 0°, 90°, 180° -Conveying speed: up to 50 m/min -Product weight: up to 25 kg -Optionally with lane divider Optional equipment: -Product guides, design depending on product -Supports to stabilise the conveyor systems at the desired conveying height -other accessories, such as sensors, stoppers, etc.
