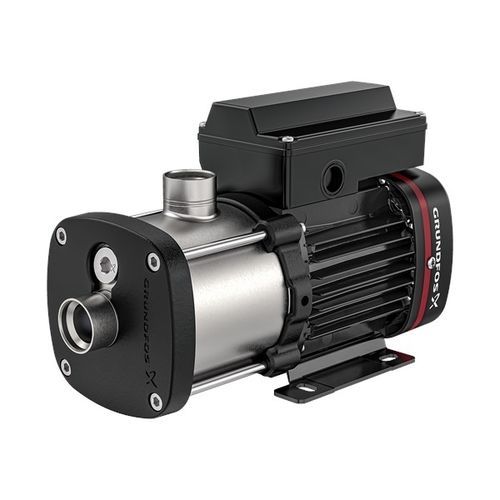

Close-coupled pump CM series
centrifugalwaterwith electric motor

Close-coupled pump - CM series - GRUNDFOS - centrifugal / water / with electric motor
Close-coupled pump - CM series - GRUNDFOS - centrifugal / water / with electric motor
Close-coupled pump - CM series - GRUNDFOS - centrifugal / water / with electric motor - image - 2
Close-coupled pump - CM series - GRUNDFOS - centrifugal / water / with electric motor - image - 3
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Fluid
water
Operation
with electric motor
Priming
self-priming
Mobility
stationary
Domain
industrial, solar
Applications
suction, transfer, irrigation, for cleaning, for air conditioning
Material
stainless steel
Other characteristics
compact, multi-stage, modular, close-coupled, for heating
Flow

Max.: 6 m³/h
(211.888 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 66 m
(216'06" )

Min.: 0 m
(0'00" )

Power

Max.: 1.3 kW
(1.77 hp)

Min.: 0.3 kW
(0.41 hp)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Description

Suitable for: Commercial heating Commercial air conditioning Commercial water pressure boosting District heating Domestic water pressure boosting Industrial cleaning process Industrial heating Industrial water supply and transfer Desalination Water distribution Irrigation Community water supply Rotor and spray irrigation Ground water transfer Livestock and wildlife watering Water treatment fertigation, chemigation and dosing Pivot and lateral irrigation Frost protection Solar boosting and water supply solutions Controls and digital groundwater management Solar controls and digital water management Solar water treatment fertigation and dosing Municipal solar solutions Agriculture solar solutions Livestock watering with solar solutions Community solar solutions Close CM Self-priming is a reliable, quiet and compact horizontal end-suction pump. The modular pump design makes customised solutions easy. CM Self-priming is available in stainless steel.

VIDEO
