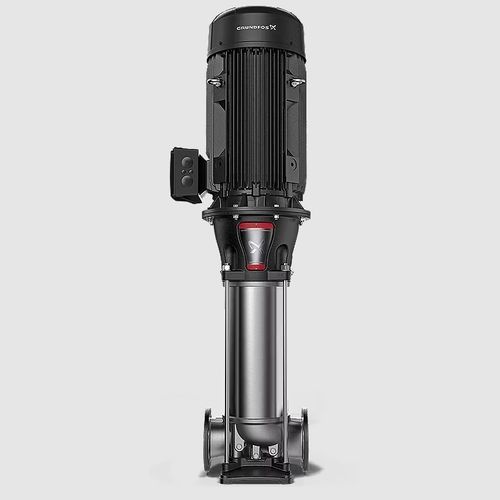

Centrifugal pump CR series

waterwith electric motorstationary

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron - all other wetted parts are in stainless steel (EN 1.4301) Minimum efficiency index (MEI) means the dimensionless scale unit for hydraulic pump efficiency at best efficiency point (BEP), part load (PL) and overload (OL). The Commission Regulation (EU) sets efficiency requirements to MEI > 0.1 as from 1 January 2013 and MEI > 0.4 as from 1 January 2015. An indicative benchmark for best-performing water pump available on the market as from 1 January 2013 is determined in the Regulation. Use vertical centrifugal CR pumps for reliable efficiency The CR pump is built from cast iron with all wetted parts made of AISI 304 grade stainless steel, making this pump suitable for non-corrosive liquids. With world-class efficiency, flows up to 320 m3/h and 40 bar working pressure, the CR is the perfect virtical centrifugal pump for a range of demanding applications, such as liquid transfer, circulation and pressure boosting of cold or hot water, aqua-farming and field irrigation With 16 flow sizes and hundreds of pressure sizes to choose from, you can be sure that there is a pump to match your job requirement. The CR pump is built from cast iron with all wetted parts made of AISI 304 grade stainless steel, making this pump suitable for non-corrosive liquids. With world-class efficiency, flows up to 320 m3/h and 40 bar working pressure, the CR is the perfect virtical centrifugal pump for a range of demanding applications, such as liquid transfer, circulation and pressure boosting of cold or hot water, aqua-farming and field irrigation.
