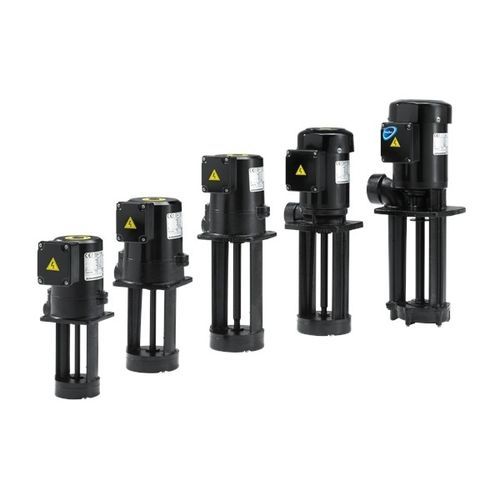

Submersible pump MTA seriescentrifugalwaterwith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Priming
- submersible
- Mobility
- mobile
- Domain
- industrial
- Applications
- cooling, cleaning
- Material
- cast iron
- Voltage
- 380-415V, 220 V
- Protection level
- submersible
- Other characteristics
- single-stage, tank-mounted
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 355 l/min
(93.78108 us gal/min)- Head
Min.: 0 m
(0'00" )Max.: 14 m
(45'11" )- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Suitable for:
Industrial cleaning process
Single stage pump for tank top mounting for pumping cooling lubricants and cutting oils for machine tool applications.
Low pressure immersible centrifugal pump for installation, in filtering systems or conveyer systems in the machine tool industry.
The pump is closed-coupled without shaft seal.
The pump is fitted with a 3-phase integrated motor.
Open impeller allows particles to pass through pump
Impeller is made of Bronze.
Motor stool and pump housing are made of cast iron.
The pump has no wearing parts.
