Submersible pump SP series
centrifugalwaterhydraulically-operated

Submersible pump - SP series - GRUNDFOS - centrifugal / water / hydraulically-operated
Submersible pump - SP series - GRUNDFOS - centrifugal / water / hydraulically-operated
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Fluid
water
Operation
hydraulically-operated
Mobility
stationary
Domain
industrial
Applications
irrigation, booster, for boreholes
Material
stainless steel
Protection level
abrasion-resistant, corrosion-resistant, submersible
Other characteristics
high-efficiency
Flow

Max.: 283 m³/h
(9,994.05068 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 60 bar
(870.226 psi)

Min.: 1 bar
(14.504 psi)

Head

Max.: 672 m
(2204'08" )

Min.: 0 m
(0'00" )

Power

Max.: 250 kW
(339.91 hp)

Min.: 0.37 kW
(0.5 hp)

Fluid temperature

Max.: 90 °C
(194 °F)

Min.: -15 °C
(5 °F)

Description

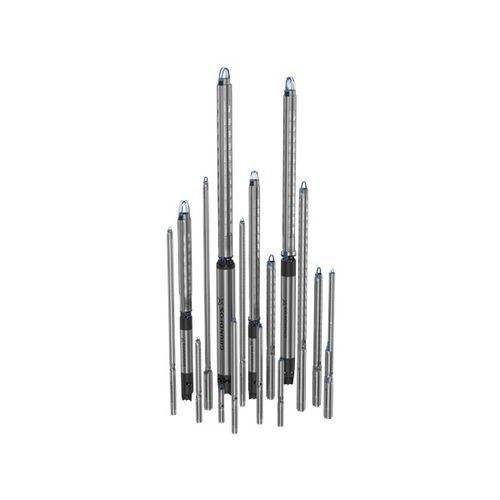

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging from 4" over 6" and 8" to 10". The motor sizes for the pumps are available in 0.37-250 kW. Reduce costs with a highly efficient SP pump The Grundfos SP submersible is a highly durable pump made of high-grade, corrosion-resistant stainless steel. Resistant to sand and aggressive water, SP also boasts features such as dry-running protection and motor burnout protection, both of which contribute to the impressive durability of the pump. Efficient and reliable submersible pumps Combining the very best materials with excellent hydraulic design makes for a highly efficient and reliable pump. Resistant to corrosion High-grade, AISI 304 stainless steel both inside and out makes the SP extremely resistant to corrosion. The right solution SP is available in many variants and sizes and it can be entirely customised to your specific application, ensuring that you always get the right solution. Non-return valve Its built-in non-return valve minimises the risk of damage from water hammering.
