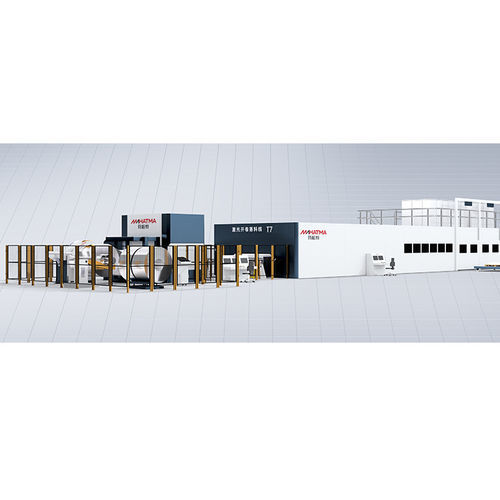

Sheet metal production line

automaticflexiblelaser

Product Overview
This belt-supported, non-destructive cutting flexible production line cuts single products from a single roll of material. After unwinding and leveling, the material enters the laser cutting unit. A dedicated belt conveyor feeds the material to the cutting area, where it undergoes dynamic cutting with dual heads, either synchronously or asynchronously. The finished material is then transported via a belt-driven rolling platform to a conveyor belt assembly line for sorting or automatic palletizing.

Technical Features

• Ensures gentle handling of materials, preventing deformation during processing.
• Materials are automatically unrolled and leveled before entering the laser cutting unit for precise cuts.
• Supports synchronous or asynchronous cutting to improve efficiency and flexibility for single-product batches.
• Cut sheets are conveyed via belt and roller platforms to sorting or automatic stacking systems for streamlined post-processing.

Parameters and Selection Guide
Parameter | Specification / Options
Acceleration | 1.5g
Maximum Material Weight | 5t–20t (optional)
Positioning Accuracy | ±0.02mm/m
Leveling Accuracy | 0.1–0.5mm/㎡
Laser Cutting Area | 6020 / 8020 / 12020
Bed Platform | Fully enclosed, belt-supported
Maximum Material Width | 2800mm
Leveling Machine Type | CNC type / Hydraulic type
Maximum Material Thickness | 12.0mm
Laser Cutting Speed | 35 m/min
Laser Power | 2000W–20000W (optional)
Optional Equipment | Laminating machine, truss suction cup, robot, waste material collection rack, automatic stacking machine

Comprehensive Services and Support

• Pre-Planning: Production demand analysis, layout optimization, and return on investment assessment.
• Installation & Commissioning: Professional teams ensure rapid equipment startup.
• Operator Training: Multi-level training in system operation, programming, and maintenance.
• Remote Diagnostics: 24/7 equipment status monitoring and fault early warning.
• Rapid Response: Nationwide service network with 4-hour technical response.
• Process Optimization: Continuous technology updates to maintain equipment competitiveness.

Applicable Materials

• Stainless steel
• Carbon steel
• Galvanized sheet
• High-strength steel plate
• Aluminum sheet
• Cold-rolled steel coils
• Cold-rolled sheet
• Aluminum-coated galvanized sheet

Application Examples

• Elevator Door Panel
• Aluminum Panel Wall
• Ceiling, Doors and Windows
• Car B-pillar
• Medical
• Battery Casing
• Equipment Casing
• Medical Equipment
• Ceiling
• Chassis and Rack

Characteristics / Technical Specifications

• Acceleration: 1.5g
• Maximum Material Weight: 5t–20t (optional)
• Positioning Accuracy: ±0.02mm/m
• Leveling Accuracy: 0.1–0.5mm/㎡
• Laser Cutting Area: 6020 / 8020 / 12020
• Bed Platform: Fully enclosed, belt-supported
• Maximum Material Width: 2800mm
• Leveling Machine Type: CNC type / Hydraulic type
• Maximum Material Thickness: 12.0mm
• Laser Cutting Speed: 35 m/min
• Laser Power: 2000W–20000W (optional)
• Optional Equipment: Laminating machine, truss suction cup, robot, waste material collection rack, automatic stacking machine
