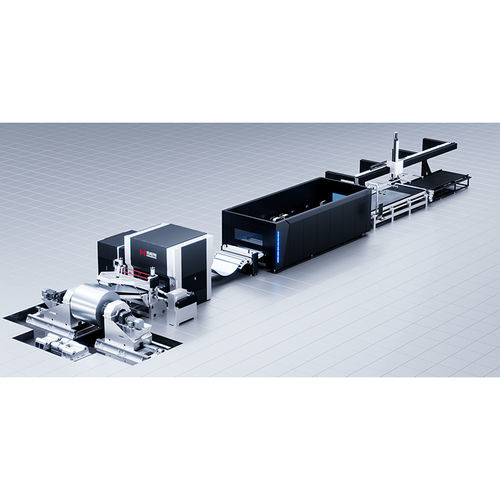

Coil production line Nam

flexiblelasermedical

Product Overview
This specialized equipment integrates decoiling, feeding, cutting, and unloading functions to achieve one-stop processing from coiled material to finished products. Equipped with an Industry 4.0 collaborative control system and a full-material adaptive dynamic compensation algorithm, it supports multi-coil switching and quick changeover. Its 0.01mm ultra-precision leveling process ensures optimal material flatness, meeting the stringent flatness requirements of advanced manufacturing fields.

Technical Features

• Seamlessly integrates leveling and laser cutting for precise, end-to-end production.
• Handles a wide range of sheet thicknesses with high precision leveling and cutting.
• Supports diverse materials, enabling flexible manufacturing across industries.
• Five series provide scalable, efficient production for varying volumes and applications.
• No roller imprint exists, meets high precision requirements.

Production Line Series and Application Scope
Series Name | Thickness Range | Examples of Applied Industries | Common Materials
UL Ultra-Thin Plate Series | 0.1–0.8 mm | Precision Electronics, Photovoltaic Backsheets, Small Home Appliances | Cold-Rolled Steel, Stainless Steel, Aluminum
TL Thin Plate Series | 0.3–3.0 mm | Automotive Sheet Metal, Home Appliance Casings, Kitchen and Bathroom Hardware | Galvanized Sheets, Carbon Steel, Aluminum Alloys
ML Medium - Heavy Plate Series | 1.0–8.0 mm | Construction Machinery, Electrical Cabinets, Rail Transit Equipment | Hot-Rolled Steel, Stainless Steel
HL Heavy Plate Series | 3.0–20.0 mm | Structural Steel Components, Heavy Machinery, Marine Plates | High-Manganese Steel, Aluminum-Magnesium Alloys
XL Extra-Heavy Plate Series | 6.0–25.0 mm | Building Steel Structures, Heavy-Duty Manufacturing, Energy Equipment | Steel Plates, Titanium Alloys

Comparison of Core Parameters Across Series
Parameter Category | UL Ultra-Thin Plate Series | TL Thin Plate Series | ML Medium - Heavy Plate Series | HL Heavy Plate Series | XL Extra-Heavy Plate Series
Thickness Range | 0.1–0.8mm | 0.3–3.0mm | 1.0–8.0mm | 3.0–20mm | 6.0–25mm
Width Range | 200–1500mm | 600–2500mm | 600–2500mm | 600–2500mm | 600–2500mm
Positioning Accuracy | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m
Laser Power | Standard Configuration | Standard Configuration | Standard Configuration | Standard Configuration | Standard Configuration
Blanking Method | Standard Configuration | Standard Configuration | Standard Configuration | Standard Configuration | Standard Configuration

Industry Selection Guide
Industry | Recommended Series | Common Materials | Recommended Width | Recommended Laser Power
Automotive Manufacturing | TL / ML / HL | High-Strength Steel, Aluminum Alloy, Stainless Steel | 1300–1600 mm | 3–12 kW
Home Appliance Industry | UL / TL | Cold-Rolled Steel, Galvanized Sheet, Color-Coated Sheet | 1000–1300 mm | 3–6 kW
Rail Transit | ML / HL | Stainless Steel, Aluminum Plate, Hot-Rolled Steel | 1600–2100 mm | 6–12 kW
Building Steel Structure | HL / XL | Carbon Steel, Alloy Steel, Thick Plate | 1600–2100 mm | 12–20 kW
Sheet Metal Processing (Multiple Industries) | TL / ML | Various Types of Plates (Small Batch, Multiple Varieties) | 1000–1600 mm | 3–12 kW
New Energy / Photovoltaics | UL / TL | Thin Aluminum, Galvanized Sheet, Silicon Steel Sheet | 1000–1300 mm | 3–6 kW
Shipbuilding and Heavy Industry | XL | Thick Steel Plate, Special Alloy | 1600–2100 mm | 12–20 kW

Comprehensive Services and Support

• Pre-Planning: Production demand analysis, layout optimization, and return on investment assessment.
• Installation & Commissioning: Professional teams ensure rapid equipment startup.
• Operator Training: Multi-level training in system operation, programming, and maintenance.
• Remote Diagnostics: 24/7 equipment status monitoring and fault early warning.
• Rapid Response: Nationwide service network with 4-hour technical response.
• Process Optimization: Continuous technology updates to maintain equipment competitiveness.

Applicable Materials

• Stainless steel
• Carbon steel
• Galvanized sheet
• High-strength steel plate
• Aluminum sheet
• Cold-rolled steel coils
• Cold-rolled sheet
• Aluminum-coated galvanized sheet

Applicable Industries

• Elevator Door Panel
• Aluminum Panel Wall
• Ceiling, Doors and Windows
• Car B-pillar
• Medical
• Battery Casing
• Equipment Casing
• Medical Equipment
• Ceiling
• Chassis and Rack

Characteristics / Technical Specifications

• Integrated decoiling, feeding, cutting, and unloading
• Industry 4.0 collaborative control system
• Full-material adaptive dynamic compensation algorithm
• Multi-coil switching and quick changeover
• Ultra-precision leveling process (0.01mm)
• Positioning accuracy: ±0.02mm/m
• Handles thicknesses from 0.1mm to 25mm (depending on series)
• Width range: 200mm to 2500mm (depending on series)
• Laser power: 3–20 kW (application dependent)
