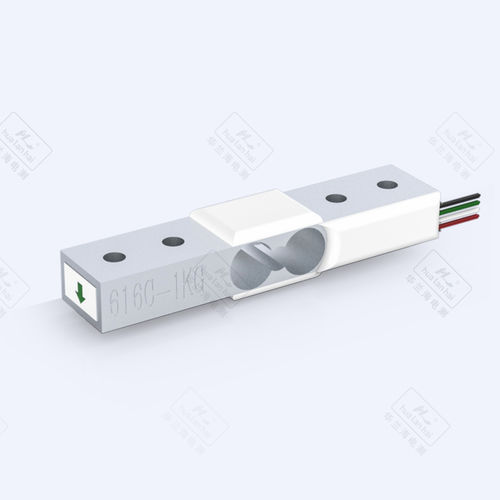

Beam type load cell CZL616C

strain gaugeweighingminiature

Aluminum miniature load cell is mainly composed of aluminum alloy elastic element, resistance strain gauge and transmission line. It has the advantages of high precision, long service life, simple structure, good frequency response characteristics, easy miniaturization, integration and variety diversification, and is easy to install. It is widely used in palm scale, kitchen scale, postal scale, fishing scale, baby scale, pet feeder, human scale and other micro electronic weighing equipment. We can customize special kinds of micro load cell products for you. The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface, Protection level reaches IP65. Output sensitivity 1.0±0.15 mV/V Linear error ±0.05% FS Lag error ±0.05% FS Off center load error ±0.1% FS Zero output ±0.1 mV/V Input impedance 1000±10Ω Output impedance 1000±10Ω Influence of zero temperature ±0.1% FS/10℃ Sensitivity temperature effect ±0.05% FS/10℃ Reference excitation voltage 3VDC ~ 10VDC insulation resistance ≥2000MΩ working temperature 0℃ ~ +40 ℃ Storage temperature -10℃ ~ +60 ℃ Safe overload range 120% Limit overload range 150%
