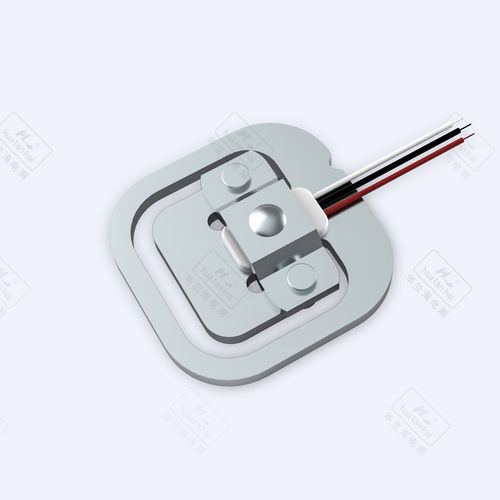

Compression load cell CZL902

planar beamstrain gaugeweighing

The steel micro load cell is mainly composed of manganese steel, resistance strain gauge and transmission line. It has the advantages of high precision, long service life, simple structure, good frequency response characteristics, easy miniaturization, integration and variety diversification, and is easy to install. It is widely used in palm scale, kitchen scale, postal scale, fishing scale, baby scale, pet feeder, human scale and other micro electronic weighing equipment. We can customize special kinds of micro load cell products for you. The elastomer of sensor is made of manganese steel, sealed by glue, colorless anodized on the surface, Protection level reaches IP65. Zero output ±0.5 mV/V Output sensitivity 0.7±0.15 mV/V Linear 0.2% FS lagging 0.2% FS Repeatability 0.1% FS Creep 0.1% FS/3min Output (input) impedance 1000±10Ω Service temperature -10℃ ~ +40 ℃ Zero temperature effect ±0.3% FS/10℃ Sensitivity temperature effect ±0.3% FS/10℃ Insulation resistance ≥2000MΩ Excitation voltage 5VDC ~ 10VDC Ultimate Overload 150% FS
