Salt spray corrosion test chamber W-STH series
climatichumiditytemperature

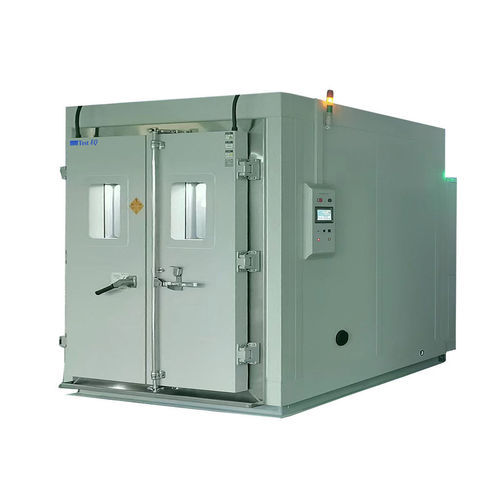

Salt spray corrosion test chamber - W-STH series - Guangdong Test EQ Equipment co., Ltd - climatic / humidity / temperature
Salt spray corrosion test chamber - W-STH series - Guangdong Test EQ Equipment co., Ltd - climatic / humidity / temperature
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
stability, environmental, aging, heating, stress, salt spray corrosion, EMC, simulation, FCC compliance, for structural durability, penetration
Product applications
for electrical equipment, for battery, for vehicles, for solar panels, device, for electronic circuit boards, for semiconductors, for avionics instruments, for composite materials, for materials testing, for medical devices
Application domain
for quality control, for the aeronautical industry, laboratory, for metrology laboratories
Configuration
floor-standing, walk-in, on casters
Light source
LED
Protection level
corrosion-resistant
Number of doors
1-door
Chamber material
stainless steel
Options and accessories
PLC-controlled
Other characteristics
stainless steel, automatic, energy-saving, accelerated, thermal
Capacity

Min.: 3 m³
(105.94 ft³)

Max.: 12 m³
(423.78 ft³)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Interior length

1,500 mm, 1,700 mm, 2,000 mm, 2,600 mm
(59.06 in, 66.93 in, 78.74 in, 102.36 in)

Interior height

1,800 mm, 2,000 mm
(70.87 in, 78.74 in)

Interior depth

1,400 mm, 1,600 mm, 2,000 mm, 2,200 mm, 3,000 mm
(55.12 in, 62.99 in, 78.74 in, 86.61 in, 118.11 in)

External length

1,600 mm, 1,800 mm, 2,200 mm, 2,800 mm
(63 in, 70.9 in, 86.6 in, 110.2 in)

External height

2,850 mm, 3,050 mm
(112.2 in, 120.08 in)

External depth

2,380 mm, 2,580 mm, 2,980 mm, 3,180 mm, 4,980 mm
(93.7 in, 101.57 in, 117.32 in, 125.2 in, 196.06 in)

Description

Technical Specifications Capacity : 3–12m³ Temperature Range: -40°C to +85°C (±1°C stability). Salt Spray (NSS/AASS/CASS): 5% NaCl solution, pH 4.0–7.2  Cyclic Conditions:  45~96%RH Cycle Customization: 1–99 hrs Spray System: 1.0–2.0 mL/hr per 80 cm² 1.Multi-Environment Simulation: •Replicates accelerated corrosion in marine, industrial, or road salt conditions with cyclic temperature/humidity stress. 2.Advanced Control: •7-inch HMI touchscreen with 100+ pre-set programs, real-time graphs, and remote monitoring via Wi-Fi/Ethernet. 3.Durability: •FRP (fiber-reinforced plastic) housing, titanium alloy heaters, and quartz heating tubes for resistance to acidic/alkali corrosion. 4.Eco-Friendly Design: •Closed-loop filtration system (recycles 70% of spray solution) and R290/R513A refrigerants (low GWP). 5.Safety & Maintenance: •Leak detection, over-temperature cutoffs, and self-cleaning nozzles to minimize downtime. 1.Automotive: •Accelerated corrosion testing for coated chassis, brake lines, and EV battery housings (e.g., SAE J2334). 2.Aerospace: •Validation of turbine blades, fasteners, and avionics under combined salt fog and thermal cycling (MIL-STD-3312). 3.Electronics: •IP-rated enclosure testing (IEC 60529) and PCB conformal coating evaluation. 4.Marine Engineering: •Simulate offshore conditions for anti-corrosive paints, stainless steel welds, and sacrificial anodes. 5.Renewable Energy: •Durability studies for solar panel frames and wind turbine components in coastal environments.
